053110 T0-1-8200/EA/SVB, Eaton 1P Pole Panel Mount Isolator Switch - 20A Maximum Current, 6.5kW Power Rating, IP65

Eaton Isolator Switch, 320A Switch Rating, Screw Terminal Type - 053110 T0-1-8200/EA/SVB

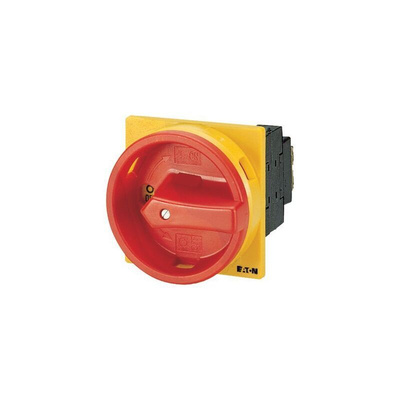

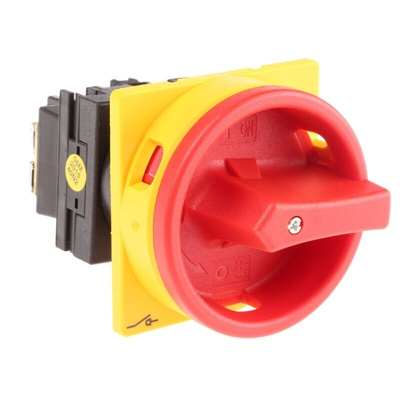

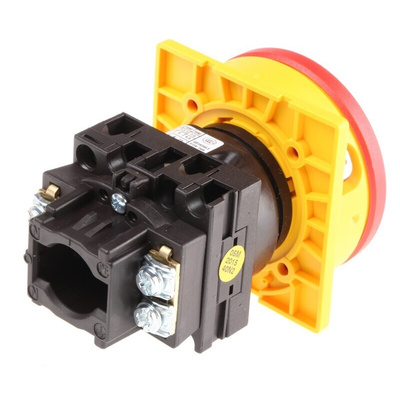

Looking for a device to safely disconnect power flowing to your equipment? Choose this isolator switch from Eaton. It's designed for single-phase circuitry, so it's ideal for low-power jobs in residential buildings, HVAC systems and power distribution panels. Use this assembly by simply turning the switch manually to cycle between the clearly marked on and off positions. For added security, this unit accommodates padlocks to keep unauthorised personnel from tampering with your setup.

Features & Benefits

• Vibrant red and yellow colours for fast identification in emergency situations
• Functions reliably in harsh temperatures between -25°C and +50°C
• Handles up to 1,200 cycles per hour, so keeps up with demanding applications
• Mechanical lifespan over 400,000 operations delivers dependable long-term performance
• Flush mounting for a neat finish on enclosures or panels

Does this isolator have an IP rating?

Yes. Once installed, the switch has an IP65 rating, which means it's completely dust-tight and resists low-pressure water jets from all directions.

What's the switching angle for this unit?

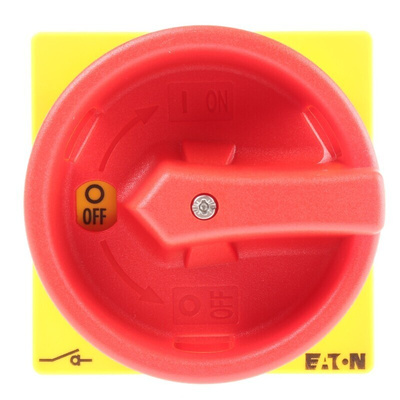

To use this isolator switch you have to turn the actuator through a 90° angle, so there's little chance of accidental position changes.

Note

Eaton formerly known as Moeller

CSA APPROVAL LR 12528

Datasheet - Eaton T0-1-8200/EA/SVB

Instruction Sheet - 053110 T0-1-8200/EA/SVB

Brochure - T Rotary Cam Switch and P Switch-Disconnector

Catalogue - P Switch-Disconnectors and T Rotary Cam Switches
