014374 & T3-1-102/EA/SVB, Eaton 2 Pole Panel Mount Switch Disconnector - 32 A Maximum Current, 13 kW Power Rating, IP65

2579441
Номер производителя: 014374 & T3-1-102/EA/SVBПроизводитель: Eaton
Цена за шт.
16998.00 руб. (С НДС) *
Количество 5+ 10+
Цена 16479.00 руб. 15945.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

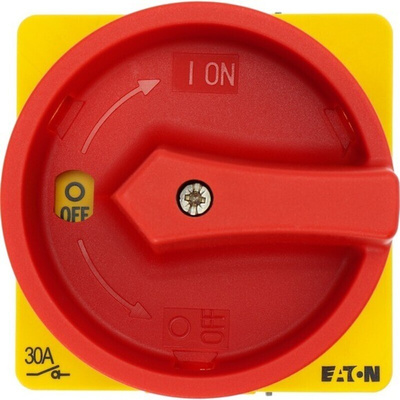

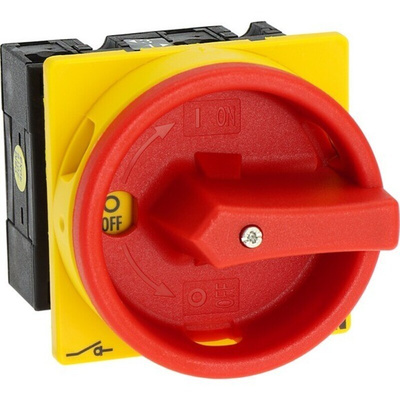

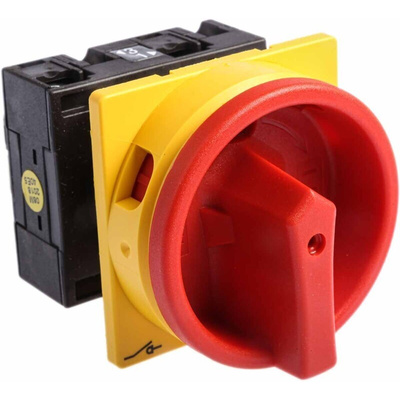

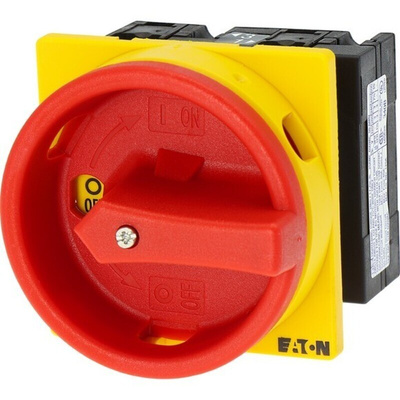

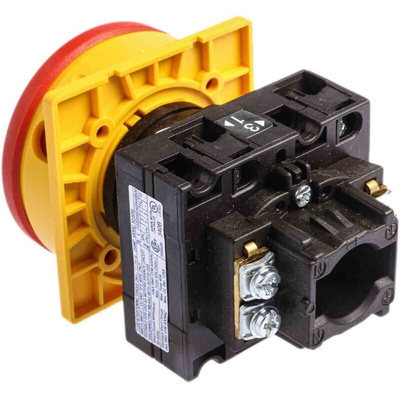

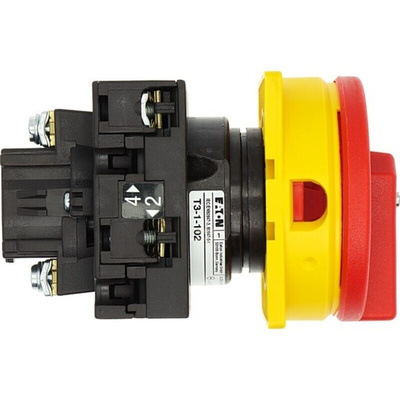

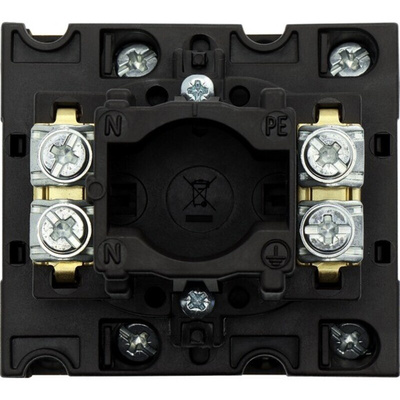

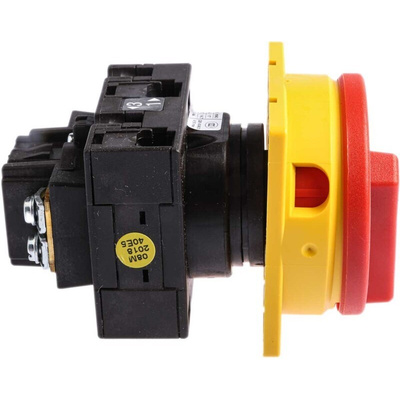

Eaton Panel Mount Isolator Switch

Eaton's panel mount isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

Features & Benefits

• The perfect solution for installing as a safety measure
• Used as an emergency switching off/emergency stop device
• The basic functions are when used as a main switch, maintenance switch or manual override switch
• Thermoplastic, high impact surface mounting enclosure with an IP65 rating - this means that the enclosure part of the isolator has ingress protection against dust and is also protected against low-pressure jets of water that comes from all directions
• Lockable in the 0/OFF position, with up to three padlocks
• Red rotary handle and yellow locking ring, providing an aesthetically pleasing finish
• Common accessories: 262-3784, 219-1445, 219-1439

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

Техническая спецификация
pdfT3-1-102/EA/SVB Data Sheet
Вспомогательные контакты доступны:
Да
Глубина:
44мм
Длина:
90мм
Замки:
Да
Класс переключателя:
32A
Количество полюсов:
2
Максимальный ток:
32A
Мощность номинальная:
13кВт
Номинальное напряжение:
440В перем. тока
Нормальное состояние конфигурации:
Нет
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-25°C
Сброс конфигурации:
Single
Степень защиты IP:
IP65
Тип клеммы:
Винт
Тип монтажа:
Крепление на панель
Цвет рукоятки:
Красный
Ширина:
75мм
Электрическая фаза:
1
