78627325 T0-2-8211/E/EZ-P1, Eaton, DP 3 Position 60° Changeover Cam Switch, 690V ac, 20A, Toggle Actuator, Поворотный переключатель

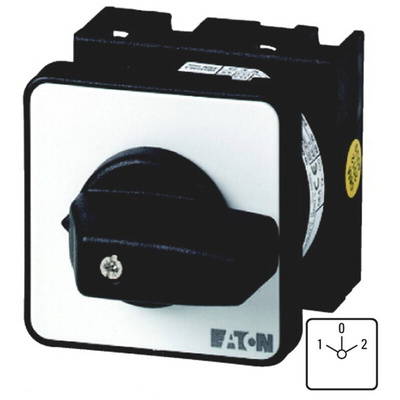

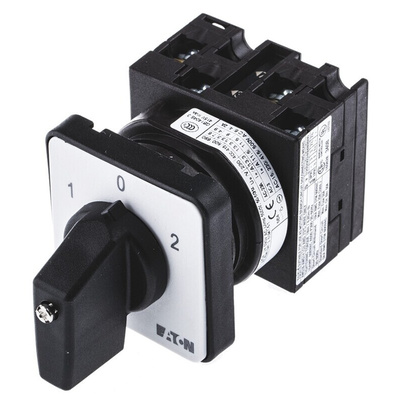

Eaton Rotary Switch, Toggle Actuator, 3 Positions - 78627325 T0-2-8211/E/EZ-P1

This rotary cam-operated changeover switch from Eaton lets you manually switch between two power sources. Two poles make it possible to direct or stop the flow of current on two circuits at the same time. You can safely isolate individual processes for maintenance or repair work, or switch to a backup power supply in case of failure. Rated for a maximum voltage of 690V AC and current up to 20A, it’s ideal for heavy-industrial use. Finger-proof terminals ensure user safety.

Features & Benefits

• Compact 48 (width) x 48 (length) x 100mm (height) dimensions to save space in busy setups
• Black thumb grip for comfortable use

How should this switch be mounted?

To achieve an IP65 rating, flush mount the switch using three-hole mounting. For an IP55 rating, use the supplied adaptor for 22.5mm single-hole mounting. IP65 ensures that your switch is entirely dust-tight and waterproof, while IP55 guarantees partial dust-proofing and protection from low-pressure water jets. To get the best performance from your switch, it's important to select the right mounting option to meet the challenges of your operating environment.

Note

Eaton formerly known as Moeller

CSA APPROVAL LR 12528

DS-022234-T0-2-8211_E-20140925

Instruction Sheet - Series T0(3)
