78627334 T0-2-8230/E/EZ-P1, Eaton, SP 3 Position 45° Multi Step Cam Switch, 690V ac, 20A, Toggle Actuator, Поворотный переключатель

Switches-22mm Single Hole or Standard Three-hole Flush Mounting

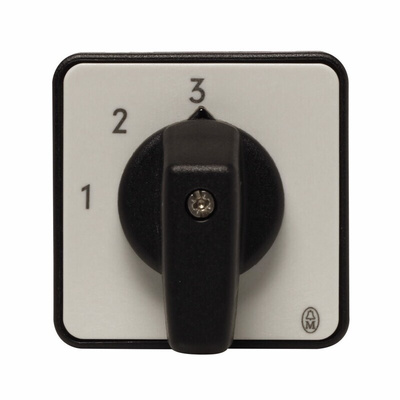

Black thumb-grip handle and silver escutcheon plate
Conform to IEC947/EN 60947
Maximum panel thickness 5mm
48 x 48mm switch front plate
Finger-proof terminals
IP65 for flush mounting three- hole mounting and IP55 for 22.5mm hole mounting (supplied with adaptor for single 22.5mm hole mounting)
Operating current: 20A
Operating temperature: –25 to +50°C

Approvals

UL, CSA

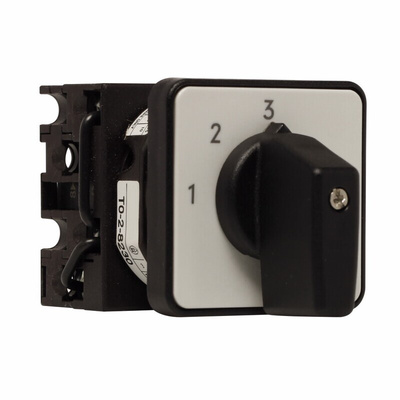

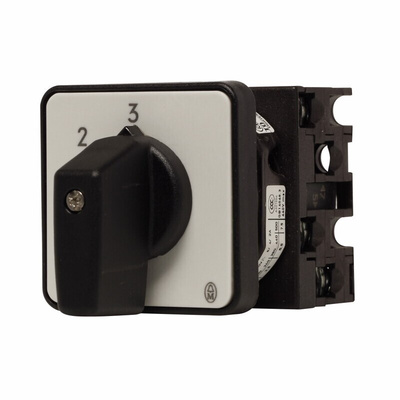

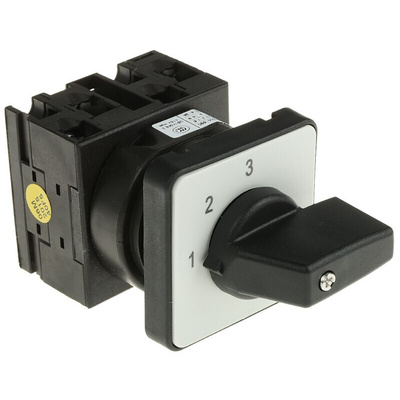

Eaton Rotary Cam Switch With Toggle Actuator, 3 Positions, 20A - T0 Series - 78627334T0-2-8230/E/EZ-P1

Choose this rotary cam switch from Eaton to reliably isolate a system from a combined power supply. It's commonly used in warehouses and airports where individual conveyor belts operate from the same power supply unit. For added safety, you can use a padlock to keep the switch in its off state and prevent accidental re-activation. This allows maintenance and repair work to be completed safely. The unit has an IP65 (ingress protection) rating, so it's shielded against dust and low-pressure water jets and can be relied on for safe use in demanding environments.

• Features a thumb grip for easier and safer handling
• Compact dimensions of 48 (length) x 48 (width) x 100mm (depth) for installation in areas where space is limited
• Screw terminals for a secure connection that won't come loose, even in the event of vibrations

How long can I expect this rotary switch to last?

This durable rotary cam switch has a mechanical lifespan that exceeds 4 million operations, so it will last a long time without the need for replacement.

Note

Eaton formerly known as Moeller

CSA APPROVAL LR 12528

Switch Configuration Data Sheet

DS-088685-T0-2-8230_E-20140925

Instruction Sheet - T0 Cam Switches
