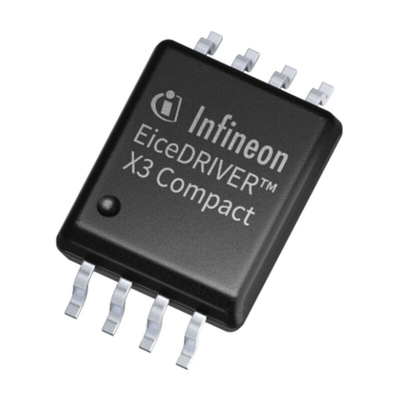

Infineon 1ED3120MU12HXUMA1, 15 A, 40V 8-Pin, PG-DSO-8

The Infineon gate driver ICs are galvanic ally isolated single channel gate driver ICs for IGBT, MOSFET and SiC MOSFET in PG-DSO-8 package. They provide a typical output current of up to 14.0 A on separate source and sink pins or a typical output current of 10.0 A with an additional 3.0 A active miller clamp. The input logic pins operate on a wide input voltage range from 3 V to 15 V using CMOS threshold levels to support 3.3 V microcontrollers. Data transfer across the isolation barrier is realized by the coreless transformer technology. All variants have logic input and driver output under voltage lockout, and active shutdown.

Single channel isolated gate driver
For use with 600 V/650 V/1200 V/1700 V/2300 V IGBTs, Si and SiC MOSFETs
Up to 14.0 A typical peak output current
40 V absolute maximum output supply voltage
High common-mode transient immunity CMTI > 200 kV/μs
Galvanic ally isolated coreless transformer gate driver
3.3 V and 5 V input supply voltage

Datasheet - 1ED3120MU12HXUMA1
