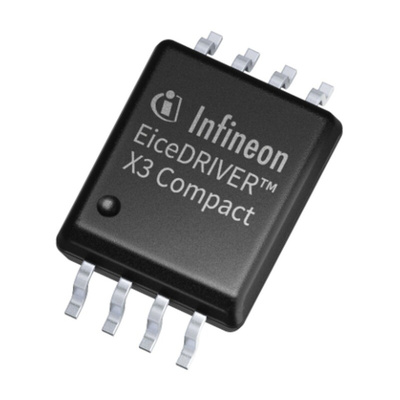

The Infineon EiceDRIVER compact single-channel isolated gate driver with 5.5 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creep age distance for IGBTs, MOSFETs and SiC MOSFETs. EiceDRIVER compact single-channel offers separate sink and source output, accurate and stable timing, active shutdown to ensure a safe IGBT off-state in case the output chip is not connected to the power, short-circuit clamping to limit the gate voltage during short circuit. The driver can operate over a wide supply voltage range, either unipolar or bipolar.
Galvanic ally isolated coreless transformer gate driver
5.5 A typical sinking and sourcing peak output current
40 V absolute maximum output supply voltage
90 ns propagation delay with 30 ns input filter
High common-mode transient immunity CMTI >200 kV/μs
Separate source and sink outputs
Техническая спецификация
Datasheet - 1ED3121MU12HXUMA1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
