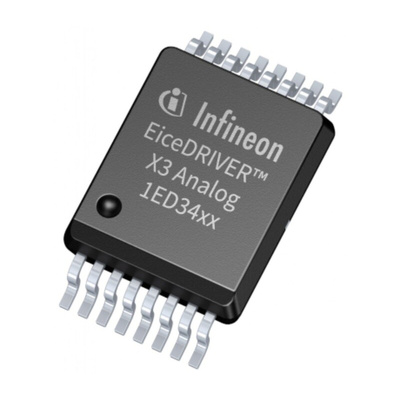

The Infineon single-channel isolated gate driver IC in a small PG-DSO-16 package with a large creep age and clearance of 8 mm. The gate driver ICs provide a typical peak output current of 3 A, 6 A, and 9 A. Adjustable control and protection functions are included to simplify the design of highly reliable systems. All parameter adjustments are done from the input side, including adjustable DESAT filter time, leading edge blanking time, and soft-off current level with only two resistors.. All logic I/O pins are supply voltage dependent 3.3 V or 5 V CMOS compatible and can be directly connected to a microcontroller.
Adjustable IGBT soft turn-off after desaturation detection with resistor at ADJA pin
Operation at high ambient temperature up to 125 °C with over-temperature shut down at 160 °C
Tight IC-to-IC propagation delay matching
High common-mode transient immunity CMTI = 200 kV/μs
Small space-saving DSO-16 fine-pitch package with large creep age distance
Техническая спецификация
Datasheet - 1ED3461MU12MXUMA1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
