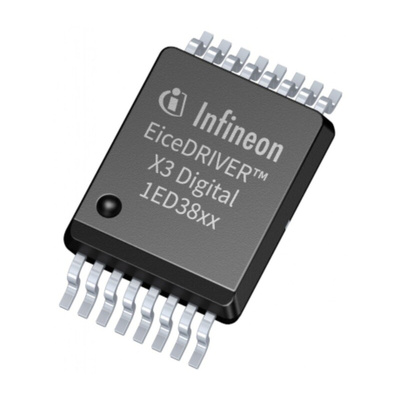

Infineon 1ED3890MU12MXUMA1, 9 A, 40V, PG-DSO

The Infineon isolated gate driver IC in a small PG-DSO-16 package with a large creep age and clearance of 8 mm. The gate driver ICs provide a typical peak output current of 3 A, 6 A, and 9 A. Adjustable control and protection functions are included to simplify the design of highly reliable systems. All parameter adjustments are done from the input side via the I2C interface. All logic I/O pins are supply voltage dependent 3.3 V or 5 V CMOS compatible and can be directly connected to a microcontroller. The data transfer across the galvanic isolation is realized by the integrated coreless transformer technology.

I2C bus for parameter configuration and status register readout
Precise, adjustable, and temperature compensated VCEsat detection (DESAT) with fault output
Adjustable IGBT soft turn-off after desaturation detection
Tight IC-to-IC propagation delay matching (tPDD,max = 30 ns)
Configurable feedback or fault-off behaviour for comparator result of integrated ADC

Datasheet - 1ED3890MU12MXUMA1
