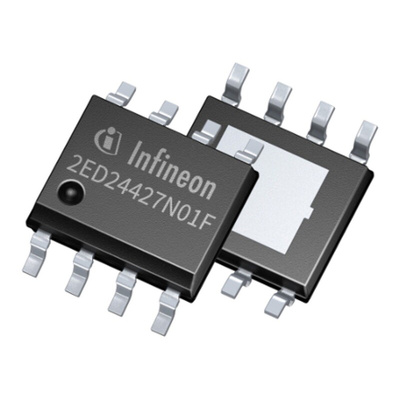

Infineon 2ED24427N01FXUMA1, 2.5 A, 10 → 20V, DSO-8

The Infineon EiceDRIVER 24 V dual-channel low-side non-inverting gate driver for MOSFETs or IGBTs with typical 10 A source and sink currents in a DSO-8 package with thermally efficient, exposed power pad. EiceDRIVER 24 V enables higher power and faster switching frequencies in multiple applications with a reduced PCB footprint and increased reliability by simplifying high power density system design. The EiceDRIVER 24 V is a low-voltage, power MOSFET and IGBT non-inverting gate driver. Proprietary latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output. The output driver features a current buffer stage. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.

0 A sink and 10 A source driver capability
11.5 V under voltage lockout
24 V maximum supply voltage
Enable function
CMOS Schmitt-triggered inputs
System cost reduction possible by paralleling more than one switch per channel
