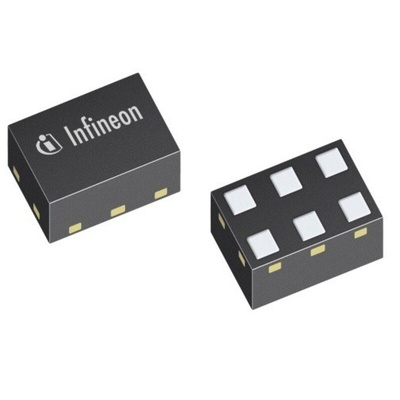

BGA729N6E6327XTSA1 Infineon, RF Amplifier Low Noise, 16.3 dB 1000 MHz, 6-Pin TSNP-6-2

The Infineon broadband low noise amplifier is a broadband low power low noise amplifier MMIC for portable and mobile TV applications which covers a wide frequency range from 70 MHz to 1000 MHz. The LNA provides 16.3 dB gain and 1.05 dB noise figure at a current consumption of 6.3 mA in the application configuration described in Chapter 3. In bypass mode the LNA provides an insertion loss of 4.2 dB. The bypass mode with much higher linearity enables this LNA to work with much lower current consumption than commonly used TV LNAs.

No external matching inductor required
RF input and output internally matched to 50 Ω
Only 2 external SMD component necessary
2 kV HBM ESD protection
Pb-free (RoHS compliant) package

Datasheet - BGA729N6E6327XTSA1
