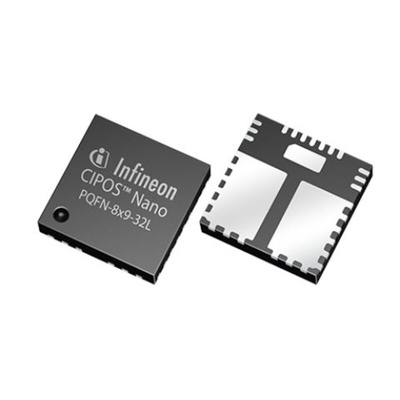

Infineon IRSM808-105MH, AC Motor Intelligent Power Module, QFN 8x9

The Infineon half-bridge IPM is a 10A, 500V half-bridge module designed for advanced appliance motor drive applications such as energy efficient fans and pumps. IR's technology offers an extremely compact, high performance half-bridge topology in an isolated package. This advanced IPM offers a combination of IR's low RDS(on) trench FREDFET technology and the industry benchmark half-bridge high voltage, rugged driver in a small PQFN package. At only 8x9mm and featuring integrated bootstrap functionality, the compact footprint of this surface-mount package makes it suitable for applications that are space-constrained.

Integrated gate drivers and bootstrap functionality
Suitable for sinusoidal modulation applications
Low RDS(on) trench FREDFET
Under-voltage lockout for both channels
Matched propagation delay for all channels
Optimized dV/dt for loss and EMI trade offs
3.3V input logic compatible
Active high HIN and active low LIN

Datasheet - IRSM808-105MH
