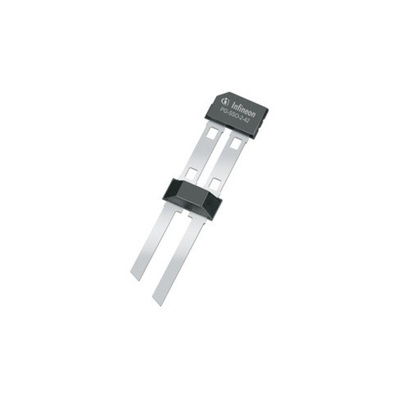

The Infineon hall effect sensor IC is designed to provide information about rotational speed, direction of rotation, assembly position and limit air gap to modern vehicle dynamics control systems and ABS. The output has been designed as a two wire current interface based on a pulse width modulation principle. The sensor operates without external components and combines a fast power-up time with a low cut-off frequency. Excellent accuracy and sensitivity is specified for harsh automotive requirements as a wide temperature range, high ESD robustness and high EMC resilience.
Two-wire PWM current interface
Detection of rotation direction
Air gap diagnosis
Assembly position diagnosis
Dynamic self-calibration principle
Single chip solution
No external components needed
High sensitivity
South and north pole pre-induction possible
High resistance to piezo effects
Техническая спецификация
Datasheet - TLE49421CHAMA2| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
