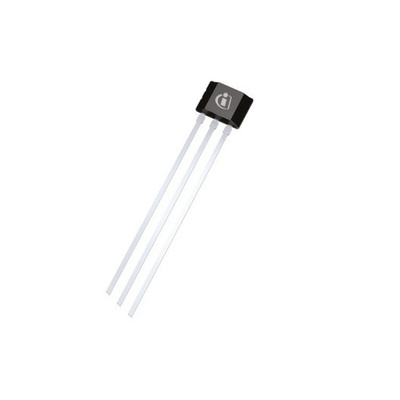

TLE4998P3XALA1, Infineon SMD Hall Effect Sensor Latch

The Infineon programmable linear hall sensor has been designed specifically to meet the requirements of highly accurate rotation and position detection, as well as for current measurement applications. The sensor provides a digital PWM signal, which is ideally suited for direct decoding by any unit measuring a duty cycle of a rectangular signal. Furthermore, it is possible to attach an external low pass filter, which allows an A/D conversion using the sensor supply voltage as a reference. The output stage is an open-drain driver pulling the output pad to low only. Therefore, the high level must be obtained by an external pull-up resistor. This output type has the advantage that the receiver may use even a lower supply voltage. In this case, the pull-up resistor must be connected to the given receiver supply.

20-bit Digital Signal Processing
Digital temperature compensation
16-bit overall resolution
Operates within automotive temperature range
Low drift of output signal over temperature and lifetime
Output of internal magnetic field values and temperature
Programming and operation of multiple sensors with common power supply
Two-point calibration of magnetic transfer function without iteration steps

Datasheet - TLE4998P3XALA1
