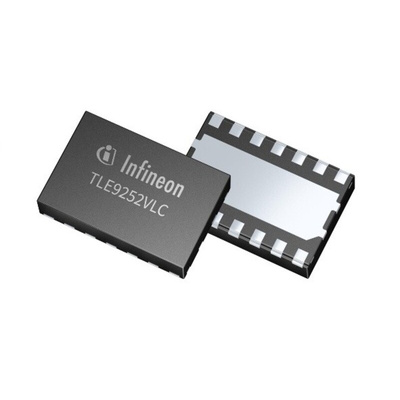

Infineon TLE9252VLCXUMA1, CAN Transceiver 5Mbps CAN

The Infineon high-speed CAN FD transceiver is a transceiver designed for HS CAN networks up to 5 Mbit/s in automotive and industrial applications. As an interface between the physical bus layer and the CAN protocol controller, the high-speed CAN FD transceiver drives the signals to the bus and protects the microcontroller against interferences generated within the network. Based on the high symmetry of the CANH and CANL signals, the high-speed CAN FD transceiver provides very low electromagnetic emission allowing the operation without a common mode choke. The non-low power modes and low power modes are optimized for reduced current consumption based on the required functionality.

Under voltage detection on VBAT, VCC and VIO
Autonomous bus biasing according to ISO 11898-2 (2016)
Bus Wake-up (WUP) and Local Wake-Up (LWU)
INH output to control external circuity
Improved robust local failure diagnosis via NERR output pin
Green Product (RoHS compliant)

Datasheet - TLE9252VLCXUMA1
