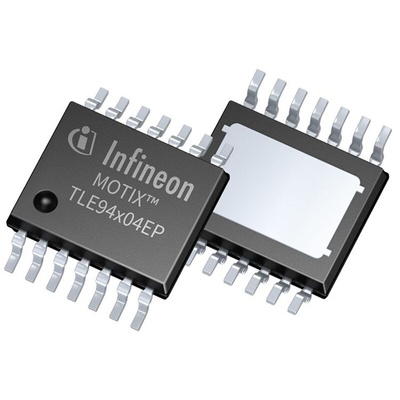

Infineon TLE94104EPXUMA1, DC Motor, Stepper Motor Driver IC 14-Pin, TSDSO

The MOTIX™ TLE9410EP is a protected four-fold half-bridge driver designed especially for automotive motion control applications

It is part of a larger family offering half-bridge drivers from three outputs to twelve outputs with direct interface or SPI interface. The half bridge drivers are designed to drive DC motor loads in sequential or parallel operation. Operation modes forward (cw), reverse (ccw), brake and high impedance are controlled from a 16-bit SPI interface. It offers diagnosis features such as short circuit, open load, power supply failure and overtemperature detection. In combination with its low quiescent current, this device is attractive among others for automotive applications. The small fine pitch exposed pad package, PG-TSDSO-14, provides good thermal performance and reduces PCB-board space and costs.

Summary of Features

•Four half bridge power outputs
•Very low power consumption in sleep mode
•3.3V / 5V compatible inputs with hysteresis
•All outputs with overload and short circuit protection
•Independently diagnosable outputs (overcurrent, open load)
•Open load diagnostics in ON-state for all high-side and low-side
•16-bit Standard SPI interface with daisy chain and in-frame response capability for control and diagnosis
•Fast diagnosis with the global error flag
•Overtemperature pre-warning and protection
•Over- and Undervoltage lockout
•Cross-current protection

Potential Applications

•HVAC Flap DC motors
•Monostable and bistable Relays
•Side mirror x-y adjustment and mirror fold
