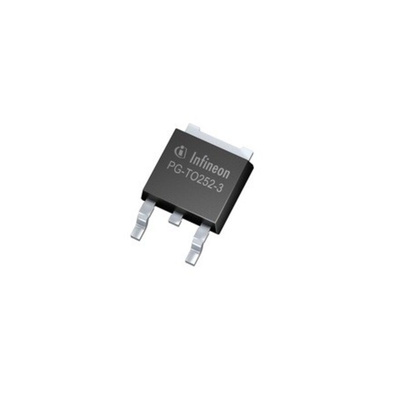

Infineon TLF80511TFV50ATMA2, 1 Low Dropout Voltage, Voltage Regulator 400mA, 3.3 and 5 V 3-Pin, TO252

The TLF80511TF V50 is a linear low dropout voltage regulator for load currents up to 400 mA with fixed output voltage (5V).

An input voltage of up to 40 V is regulated to V Q,nom which is 5 V with ±2 % precision. The TLF80511TF V50 with a typical quiescent current of 38 μA, is the ideal solution for systems requiring very low operating currents, such as those permanently connected to a battery. It features a very low dropout voltage of 100 mV, when the output current is less than 100 mA. In addition, the dropout region begins at input voltages of 3.3 V (extended operating range). This makes the TLF80511TF V50 suitable to supply automotive systems. In addition, the TLF80511TF V50’s new fast regulation concept requires only a single, 1 μF output capacitor to maintain stable regulation.

Summary of Features

•Output Voltage 5 V
•Output Voltage Precision ± 2 %
•Output Current up to 400 mA
•Ultra Low Current Consumption 38 μA
•Very Low Dropout Voltage: 100 mV at 100 mA Output Current
•Extended Operating Range Starting at 3.3 V
•Small Output Capacitor 1 μF
•Output Current Limitation
•Overtemperature Shutdown
•Suitable for Use in Automotive Electronics
•Wide Temperature Range from -40 °C up to 150 °C
•Green Product (RoHS compliant)
•AEC Qualified

Benefits

•Very Wide Input Voltage Range
•Fast Voltage Regulation Loop
•Supports Voltage Cranking Application
•Very Low Dropout

Potential Applications

•Automotive General ECU
•Automotive Dashboard
•Clima Control (HVAC)
•Start-Stop Control Unit

Datasheet - TLF80511TFV50ATMA2
