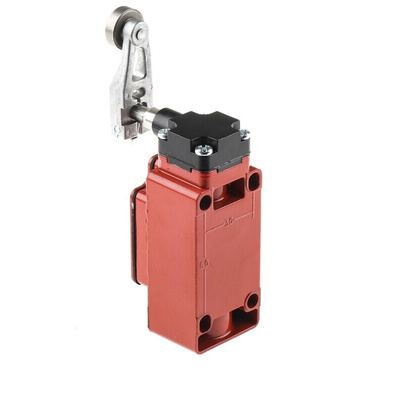

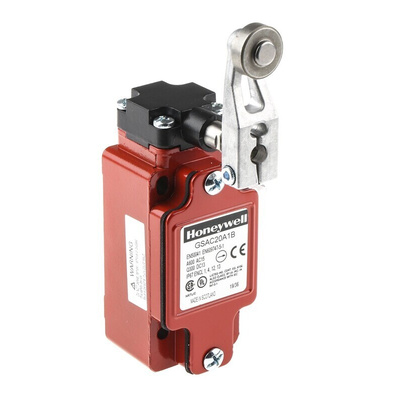

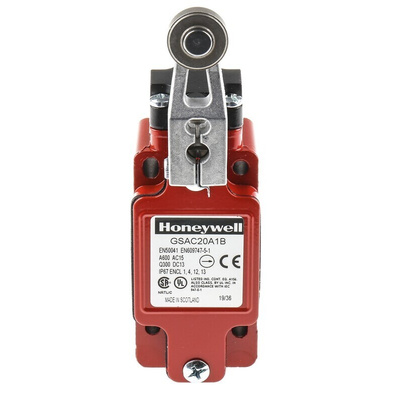

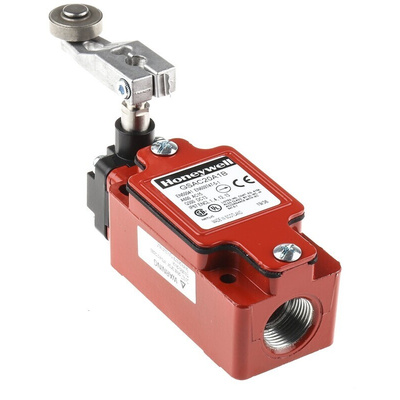

GSAC20A1B, Honeywell GSA Series Roller Limit Switch, 2NO/2NC, IP67, 4P, Metal Housing, 600V ac Max, Концевой выключатель

GSS Series, Safety Limit Switches

Designed to EN50041 characteristics and mounting
The GSS family of limit switches are specifically designed for use in safety applications. All the units have been independently tested to IEC947-5-1/EN60947-5-1 standards and comply with the essential requirements laid down (Low Voltage Directive for Switchgear)
They are all marked positive break and comply with the requirements of the Machine Directive (89/392/EEC) as amended by Directive 91/368/EEC
These are Category 1 devices per EN954-1 (the machine directive) Category can be raised to 4 by using in association with safety relays
IP67 Rating

Typical applications: On guard doors where key alignment has proved to be a real problem and cannot be solved by key operated switches. The user needs to differentiate mission critical safety components on the machine from regular sensors

Approvals

UL, CSA

Honeywell Limit Switch, 9.7N Operating Force, 500g Weight - GSS Series - GSAC20A1B

Use this limit switch from Honeywell to automate the opening and closing of guard doors in your industrial systems. It has a snap-action roller actuator that offers a quick reaction to object detection, making it useful as both a control and safety device. The switch's die-cast zinc body is resistant to impact and corrosion, so it's a practical choice for use in harsh environments.

Features & Benefits

• IP67 rating means it's dustproof and protected against immersion in up to 1m of water for 30 minutes
• Broad operating temperature range of -25°C to +85°C for use in demanding environments

Applications

• Elevators and escalators
• Overhead garage doors
• Machine tool equipment

Can I install this switch in tight spaces?

This limit switch has compact dimensions of 145.8 (length) x 42 (width) x 55.9mm (depth), making it suitable for installation in areas with limited space.

Safety Limit Switch

Machine Guarding and Safety Range Overview
