GSAC20C, Honeywell GSS Series Plunger Limit Switch, 2NO/2NC, IP67, 4P, Metal Housing, 600V ac ac Max, 3A Max, Концевой выключатель

GSS Series, Safety Limit Switches

Designed to EN50041 characteristics and mounting
The GSS family of limit switches are specifically designed for use in safety applications. All the units have been independently tested to IEC947-5-1/EN60947-5-1 standards and comply with the essential requirements laid down (Low Voltage Directive for Switchgear)
They are all marked positive break and comply with the requirements of the Machine Directive (89/392/EEC) as amended by Directive 91/368/EEC
These are Category 1 devices per EN954-1 (the machine directive) Category can be raised to 4 by using in association with safety relays
IP67 Rating

Typical applications: On guard doors where key alignment has proved to be a real problem and cannot be solved by key operated switches. The user needs to differentiate mission critical safety components on the machine from regular sensors

Approvals

UL, CSA

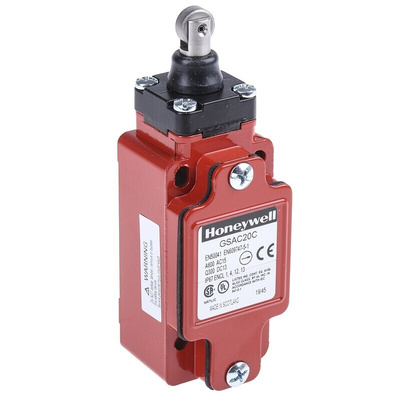

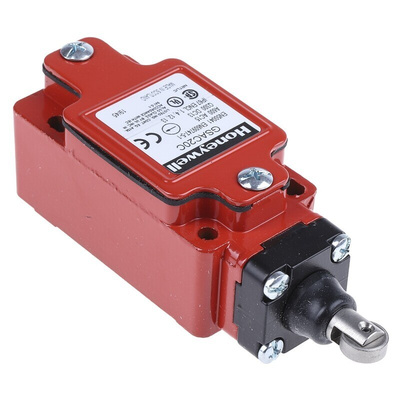

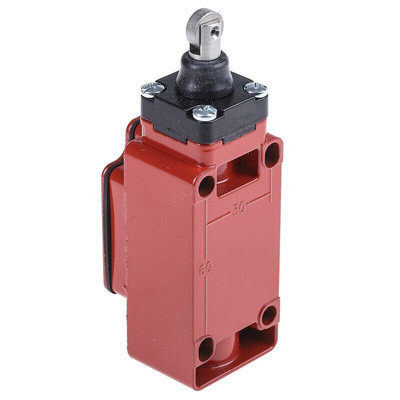

Honeywell Plunger Limit Switch, 600V AC, 2NO/2NC - GSS Series - GSAC20C

Use this limit switch from Honeywell on your machinery's gates and guards. It has a bright red body colour, so it's instantly recognisable as a safety device. For versatility, it provides up to four electrically independent contacts, so you can configure it to work with your specialised equipment. The rugged metal housing is epoxy-coated to prevent corrosion, making it suitable for use in harsh conditions. An IP67 (ingress protection) rating means it's dust-tight and can withstand temporary submersion in water, so it can stand up to the demands of heavy industry.

Features & Benefits

• Wide operating temperature range of -25°C to +85 °C for use in demanding environments
• Long mechanical lifespan of 15,000,000 cycles for long-lasting performance and reduced maintenance time
• Compact dimensions of 141 (length) x 42 (width) x 42mm (depth) for installation in tight spaces

Applications

• Agricultural industry
• Construction machinery and equipment
• Gates, guards and doors
• Scissor and platform lifts

When should I choose a limit switch with a roller plunger actuator?

You should choose a roller plunger when a plunger-type actuator is needed but a force or moving object won't hit it directly at a 90º angle. Roller plungers use non-perpendicular force to create the perpendicular force needed to activate the switch.
