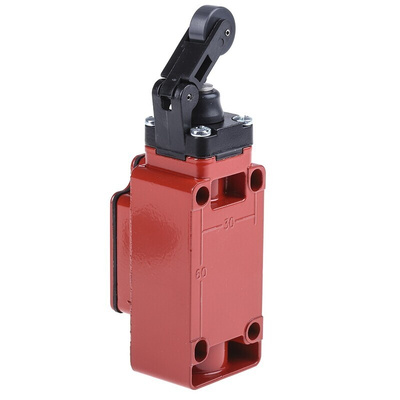

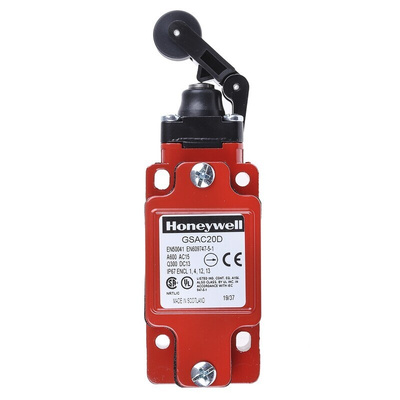

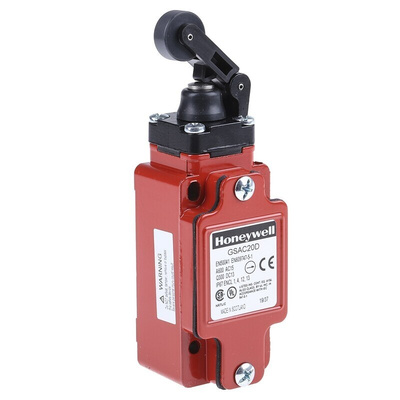

GSAC20D, Honeywell GSA Series Roller Lever Limit Switch, 2NO/2NC, IP67, 4P, Metal Housing, 600V ac Max, Концевой выключатель

GSS Series, Safety Limit Switches

Designed to EN50041 characteristics and mounting
The GSS family of limit switches are specifically designed for use in safety applications. All the units have been independently tested to IEC947-5-1/EN60947-5-1 standards and comply with the essential requirements laid down (Low Voltage Directive for Switchgear)
They are all marked positive break and comply with the requirements of the Machine Directive (89/392/EEC) as amended by Directive 91/368/EEC
These are Category 1 devices per EN954-1 (the machine directive) Category can be raised to 4 by using in association with safety relays
IP67 Rating

Typical applications: On guard doors where key alignment has proved to be a real problem and cannot be solved by key operated switches. The user needs to differentiate mission critical safety components on the machine from regular sensors

Approvals

UL, CSA

Honeywell Limit Switch, 2NO/NC, 24V DC - GSS Series - GSAC20D

For safe operation of guard doors in industrial and commercial settings, choose this limit switch from Honeywell. Its accurate position and object detection ensures that automated doors close and open properly and in the right position. This switch's red colour means it's easy to spot in a crowded setup and makes it readily identifiable as a safety device. Thanks to the epoxy-coated zinc housing, this unit is resistant to impact and corrosion, making it suitable for use in harsh environments.

Features & Benefits

• IP67 rating indicates it's dustproof and protected against submersion in 1m of water for up to 30 minutes
• Low switching current of 600mA for energy efficiency

Applications

• Platform lifts
• Agricultural equipment
• Marine industry

What's the operating temperature range of this limit switch?

This limit switch has a broad operating temperature range of -40°C to +85°C, making it suitable for use in demanding environments.
