GSAC21D, Honeywell GSS Series Roller Lever Limit Switch, 2NO/2NC, IP67, DPDT, Metal Housing, 240V ac Max, 3A Max, Концевой выключатель

Honeywell Roller Lever Limit Switch, 2NO/2NC - GSAC21D

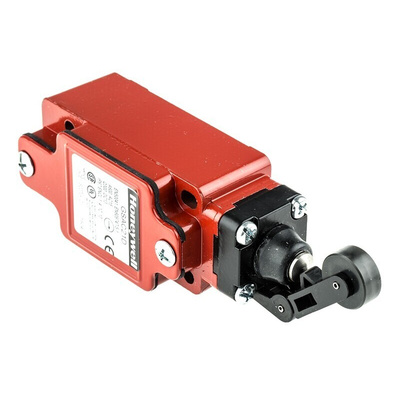

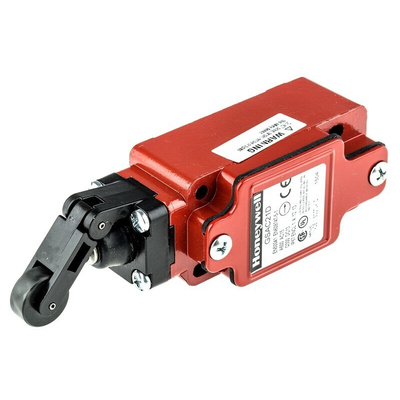

This electromechanical limit switch from Honeywell is a contact sensor used for object detection in a range of industrial applications. The component is designed as a safety device to stop machines from running when their guard doors are opened. It comes equipped with a roller lever actuator and two pairs of normally open (NO) and normally closed (NC) contacts that allow you to modify how the sensor functions according to your specifications. Its red colour makes it easily identifiable on the machine for safety applications.

Features & Benefits

• Epoxy-coated zinc housing provides resistance to impact and corrosion for use in heavy-duty applications
• IP67 (ingress protection) rating for protection against dust and submersion in up to 1m of water for 30 minutes
• Standard mounting orientation with screw connection type saves time and effort during installation
• Long mechanical life of up to 15 million cycles for long-lasting use
• Operational heads rotate in 90° increments for flexible installation

Applications

• Material handling
• Plastic moulding machinery
• Agricultural and construction equipment

What are the advantages of an adjustable roller lever limit switch?

Unlike a regular roller lever switch, an adjustable roller lever switch allows you to increase or decrease the length of the lever to suit your needs, making it a more versatile option.
