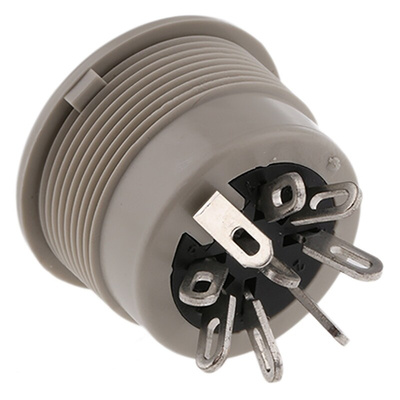

931749517 MAB 8100 SN grey, Hirschmann, MAB 8 Pole Din Socket, DIN 45326, 4A, 34 V ac/dc IP30, Screw Lock, Female, Panel Mount, Разъем

Panel Mounting Connectors

Screwlocking plastic DIN connectors suitable for a wide variety of applications. Fitted with solder bucket and solder tag terminations, respectively.

Secure screwlock mechanism preventing accidental disconnection
Cable acceptance 5·5mm maximum
Tin plated contacts with UL94V-2 rated housings

Belden Hirschmann DIN Socket, PE Outer Housing, 5.5mm Maximum Cable Diameter - MAB Series - 931749517 MAB 8100 SN grey

Need a robust connection solution for linking one cable to another? Pick this DIN socket from Belden's Hirschmann range. It provides optimal conductivity thanks to its eight tin-plated brass pins. These are set in a flame-retardant PA66 contact bearer, which helps minimise the spread of flames in the event of a fire. Both the bearer and outer PE housing are non-conductive, so you're protected against electric shocks when you touch them. This versatile component suits wires up to 0.34mm², letting you connect any cables up to 22AWG.

Features & Benefits

• Solder termination for a secure permanent connection to your cable
• Locking nut helps prevent accidental disconnection
• Versatile component suits AC and DC voltages

Applications

• Digital audio
• Cable connections
• Keyboards

What temperatures does this DIN socket tolerate?

This product works in a temperature range between -20°C and +60°C, so you can trust it's safe in harsh environments.
