RS PRO Illuminated Piezo Switch, Momentary (NO), SPST, IP69, Flexible Wire, 200 mA, -20 → +75°C Natural

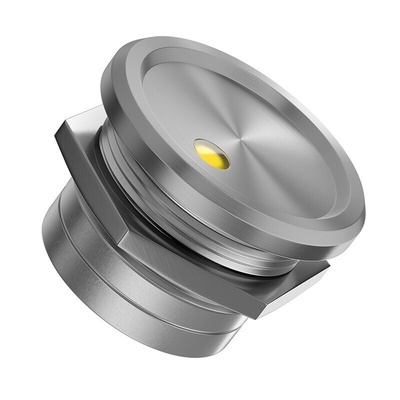

RS PRO Piezo Point Illuminated Switch, Flat Face 28 mm Diameter, Stainless Steel N.O Momentary, IK10, IP69K

From RS PRO this is a Point illuminated Piezo switch housed within an aviation grade metal which is milled for additional strength plus provides complete protection from water, chemicals, dirt, extreme temperatures plus the added protection from vandalism. The RS PRO illuminated piezo switch is a truly universally used switch not only used for applications on land, and in the air but used underwater capable of withstanding depths of up to 1 km, impact resistant to IK10. This tough hard wearing piezoelectric switch is touch activated suitable for various applications and rated for fifty million activations.

Features & Benefits

• Piezo Switch


• Point Illuminated


• No moving parts


• Flat faced design, made from Stainless steel 303


• N.O Momentary


• Voltage rating 1 V to 24 V, 0.2 A


• LED red and green, 5 Volt LED


• 24 AWG, 30 cm paired standard wire connection


• 3 – 5 N force switch operation


• 22.5 mm diameter mounting hole, PG16 threads


• ESD, RFI, EMI protected


• Exceeds Class 1 Div 1 hazardous location requirement


• IK10 Impact resistant, IP69K protection


• Completely sealed


• Compliant to IEC/EN 60529, CE, ROHS, REACH

Applications

• Self-service terminals in car washes


• Underwater diving equipment


• Depths of up to 1 km


• Applications activated by hand, foot, even wearing gloves or using tools


• Suitable for all application

What is a Piezo Switch?

Piezo switches are also known as Piezoelectric switches. The switches are an electronic switch that uses the piezoelectric effect converting mechanical energy into an electrical signal. The switch does not use mechanical components like springs or buttons to activate or deactivate electrical circuits. A Piezo switch has many advantages over standard mechanical switches because as they contain no moving parts, they are exceptionally durable, have a longer working life and are suitable for extreme environments.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
