RS PRO Illuminated Piezo Switch, Momentary (NO), SPST, IP69, Cable, 200 mA, -20 → +75°C Green

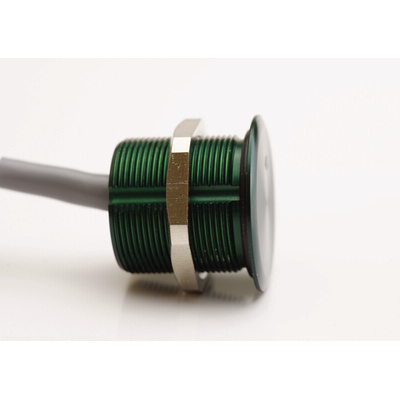

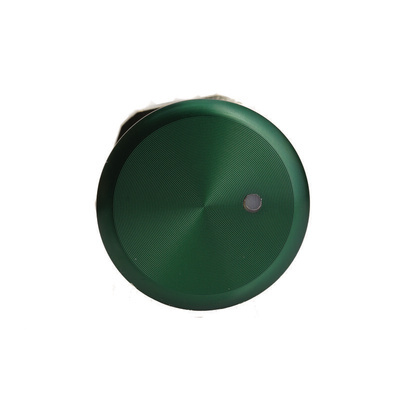

RS PRO Piezo Dot Illuminated Switch, Flat Face 24 mm Diameter, Green Aluminium N.O Momentary, IK10, IP69K

From RS PRO this is a Point illuminated Piezo switch housed within an aviation grade metal which is milled for additional strength plus provides complete protection from water, chemicals, dirt, extreme temperatures plus the added protection from vandalism. The RS PRO illuminated piezo switch is a truly universally used switch not only used for applications on land, and in the air but used underwater capable of withstanding depths of up to 1 km, impact resistant to IK10. This tough hard wearing piezoelectric switch is touch activated suitable for various applications and rated for fifty million activations.

Features & Benefits

• Piezo Switch


• Dot illuminated


• No moving parts


• Green faced design, made from Anodized aluminium


• N.O Momentary


• Voltage rating 0 V to 24 V, 0.2 A


• LED red, 12 Volt LED


• 30 cm Cable connection


• 3 – 5 N force switch operation


• ESD, RFI, EMI protected


• Exceeds Class 1 Div 1 hazardous location requirement


• IK10 Impact resistant, IP69K to 100 Bar protection


• Completely sealed


• Compliant to IEC/EN 60529, CE, ROHS, REACH

Applications

• Self-service terminals in car washes


• Underwater diving equipment


• Depths of up to 1 km


• Applications activated by hand, foot, even wearing gloves or using tools


• Suitable for all application

What is a Piezo Switch?

Piezo switches are also known as Piezoelectric switches. The switches are an electronic switch that uses the piezoelectric effect converting mechanical energy into an electrical signal. The switch does not use mechanical components like springs or buttons to activate or deactivate electrical circuits. A Piezo switch has many advantages over standard mechanical switches because as they contain no moving parts, they are exceptionally durable, have a longer working life and are suitable for extreme environments.
