RS PRO Illuminated Piezo Switch, Momentary (NO), SPST, IP69, Flexible Wire, 200 mA, -20 → +70°C White

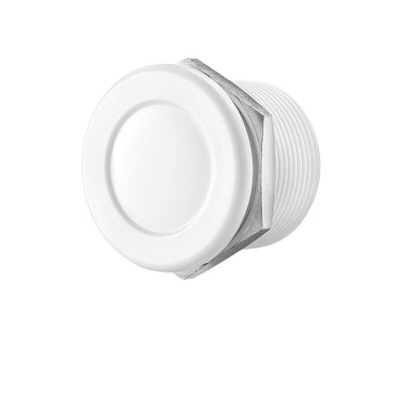

RS PRO Piezo Illuminated Switch Button, White Plastic N.O Momentary, IP69

From RS PRO this is an illuminated Piezo button housed within plastic (POM) one piece casing which includes an LED polycarbonate illuminated ring. The switch button is rigid and extremely strong, rigid, and hard wearing plus provides excellent protection in extreme environments. Total protection from liquid when fully submersed plus protection from snow, rain, ice, and dirt including extreme temperatures. As the RS PRO Piezo switch button has no moving parts this button is perfect for environments where it is in constant use and will survive rough and harsh treatment.

Features & Benefits

• Piezo Button Switch


• Illuminated


• No moving parts


• White POM (Polyoxymethylene) housing – one piece design


• High strength hardness (HMI)
\t

• N.O Momentary


• Mounting hole, M22 x 1


• Voltage rating 1 V to 24 V, 0.2 A


• PVC wired 24 AWG 300 mm connection


• 3 -5 N Switching force


• LED red, green, blue 24 V LED


• Illuminated ring made from Polycarbonate


• IP69 protection


• Tested to 50 million cycles


• Completely sealed


• Compliant to CE, ROHS, REACH

Applications

• Various applications within many industries


• Underwater applications


• Automotive controls, industrial control panels machinery and equipment


• Mechanical devices, within home environments


• Suitable for all extreme and tough applications including cash machines, ticketing machines, self-service terminals, high traffic areas

What is a Piezo Switch?

Piezo switches are also known as Piezoelectric switches. The switches are an electronic switch that uses the piezoelectric effect converting mechanical energy into an electrical signal. The switch does not use mechanical components like springs or buttons to activate or deactivate electrical circuits. A Piezo switch has many advantages over standard mechanical switches because as they contain no moving parts, they are exceptionally durable, have a longer working life and are suitable for extreme environments.
