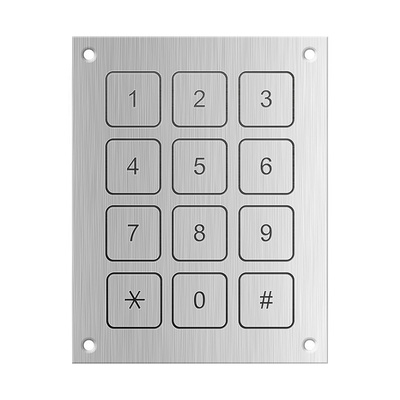

RS PRO IP68 12 Key Aluminium Piezo Keypad

RS PRO Piezo Keypad, 3 x 4 Format Touch Operated, Aluminium, Cable Termination, IP68K

From RS PRO this is a Piezo Keypad, touch operated one piece design with a machined aluminium housing complete with anodized number printing. This is a truly versatile keypad suitable for use within various environments, indoors and outdoors as the keypad unit is completely waterproof, tamperproof and vandal proof. As the RS PRO keypad has no moving parts that will not wear out or jam up, it is perfect for high traffic and high abuse environments plus has an additional benefit that it has excellent performance in extreme climates from arctic to desert temperatures. As no power is required for the switch operation the piezo keypad / touch pad is adaptable for battery or solar powered systems.

Features & Benefits

• Piezo keypad


• Touch operated


• No moving parts


• Aluminium 6061 machined housing, one-piece design 9 mm thick


• Permanent anodized printing of keypad numbers, no fading or wear
\t

• Zero powered switch operation


• Standard matrix output, ASIC interface not required


• Flat cable termination to FC-10 connector


• 24/7 365 operation


• IP68K protection


• Excellent for demanding environments and extreme temperatures


• Tamperproof, vandal proof


• Length 93 mm, Width 73 mm, Depth 9 mm


• Compliant to IEC/EN 60529, CE, ROHS, REACH

Applications

• Various applications within many environments


• Public areas, high volume traffic environments


• Correctional facilities, petroleum refineries, submerged equipment


• Suitable for all extreme and tough applications including industrial control panels and equipment, security systems, access control panels

What is a Piezo Keypad?

Piezo keypads are a type of keypad or keyboard that uses piezoelectric technology which will register and detect key presses. When you press on the keypad it generates and electrical signal which registers which key has been pressed then the internal circuitry interprets the signals sending the input data to the system.
