100230406, Norgren PNEUFIT 10 Series Straight Fitting, Push In 4 mm to Push In 6 mm, Tube-to-Tube Connection Style, 10023

IMI Norgren Pneumatic Fitting, Straight Adaptor Type, -0.9 to 18 Bar Operating Pressure - PNEUFIT 10 Series - 100230406

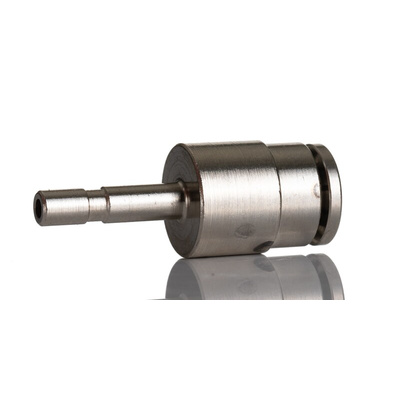

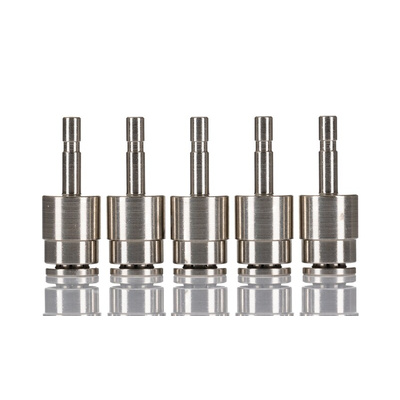

When you need to optimise airflow in a flash, turn to this pneumatic fitting from IMI Norgren. Assembly couldn't be easier, thanks to the straight-bodied design and easy-to-link connectors. You'll find a push-in port at each end – one's 4mm and the other is 6mm – for widespread compatibility with nylon and polyurethane tubes. No special tools are needed for installation, as the fitting has an internal hexagon for use with a standard Allen key. Simply insert your tube directly through the unit's collet to lock it into place.

Features & Benefits

• Silicone-free O-ring seals provide an airtight grip you can rely on, with no risk of contamination
• Performs reliably in temperatures of -20°C to +80°C
• Suitable for heavy-duty industrial settings with an operating pressure range between -0.9 and 18 bar
• Nickel-plated brass body resists corrosion in damp or steamy settings
• Light weight of 11g won't strain your system

Applications

• Industrial manufacturing
• Automated production lines
• Medical devices
• Pharmaceutical industry

What media can I use this fitting with?

It's designed specifically for use with compressed air, so it's a reliable choice for pneumatic systems.

Datasheet - 100230406
