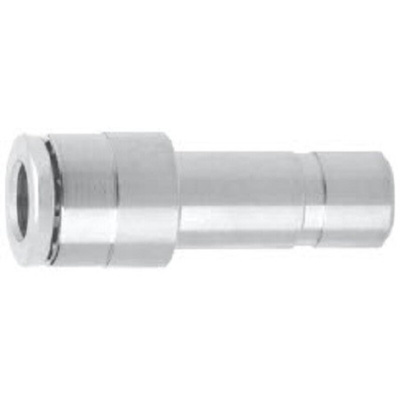

100230604, Norgren PNEUFIT 10 Series Straight Fitting, Push In 4 mm to Push In 6 mm, Tube-to-Tube Connection Style, 10023

IMI Norgren Pneumatic Fitting, Unequal Stem Type, 34mm Length - PNEUFIT 10 Series - 100230604

For pipe connections that won't lose air, opt for this IMI Norgren pneumatic fitting. As an unequal stem type with push-in connectors on each end, the straight adapter is a cinch to use. Positive tube anchorage ensures a firm hold that won't wobble or pull loose. This cuts down on the need for regular maintenance and helps to keep your pneumatic circuit in tip-top shape. To quickly release the hose without causing damage, simply press down on the fitting's handy release collet. Thanks to a broad ambient temperature range between -20°C and +80°C, this is a reliable option for use in harsh environments.

Features & Benefits

• Compatible with PA and PUR air pipes for versatility
• Broad operating pressure range of -0.9 to 18 bar makes it compatible with heavy-duty applications
• Short length of 34mm for space-saving hose connections
• Light weight of 10g puts minimal strain on tubes

Applications

• Automotive manufacturing
• Pharmaceutical industry
• Data and control centres
• Automated assembly lines

Can I use this pneumatic fitting in damp conditions?

Yes, thanks to the nickel-plated brass body and collet, you can trust the connector to shrug off corrosion and be durable enough for use in damp or humid settings.

Datasheet - 100230604
