100290600, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, Push In 6 mm to Push In 6 mm, Threaded Connection Style

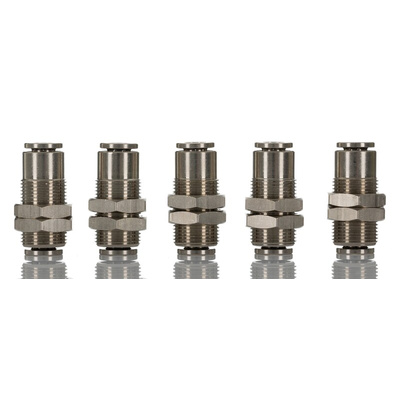

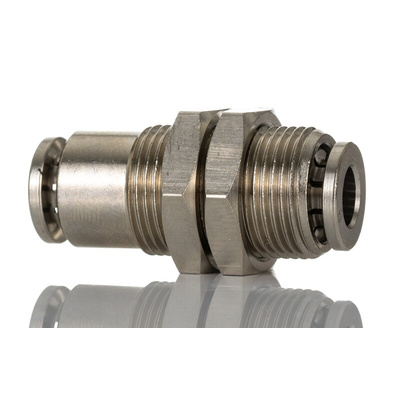

IMI Norgren Pneumatic Fitting, Bulkhead Connector Type, 33mm Length - PNEUFIT 10 Series - 100290600

Are you looking for the missing link between your pneumatic valve and air pump? Add this pneumatic fitting from IMI Norgren. Once it's locked in, the component holds on fast, even under demanding vacuum pressures as low as -18 bar. Thanks to its nickel-plated brass body, this sturdy piece of kit resists corrosion to give you long-lasting performance. Attach it to IMI Norgren's PA2-series nylon tubing, which comes in lengths of 25m (212-9286) or 100m (218-0638) to get the ball rolling.

Features & Benefits

• Reliable, even in demanding applications, thanks to its wide -20°C to +80°C temperature range
• O-ring seals prevent pressurised air from escaping and keep dirt out
• Push-in design for speedy and hassle-free installation

Applications

• Air tools
• Manufacturing facilities
• Food and drink processing

How do I securely attach a tube to this fitting?

To attach a pneumatic tube, you first need to cut the end so it's square and burr-free. Then, push the nylon pipe through the fitting's collet until it passes the O-ring seal. When you can feel you've hit the end, pull back slightly to lock it all into place.
