100400400, Norgren PNEUFIT 10 Series Straight Fitting, Push In 4 mm to Push In 4 mm, Tube-to-Tube Connection Style, 10040

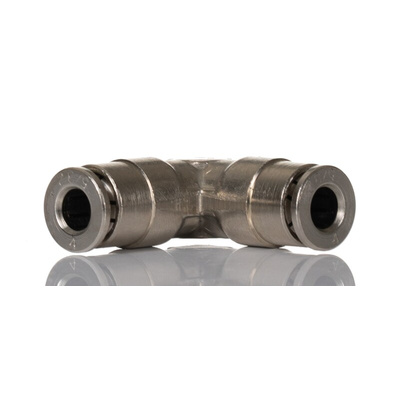

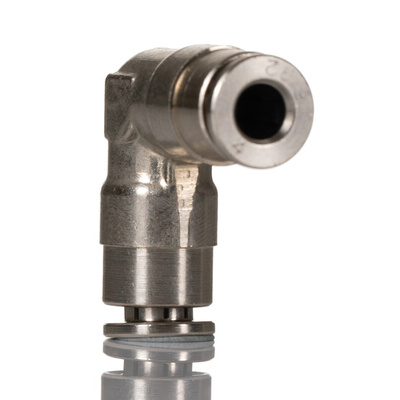

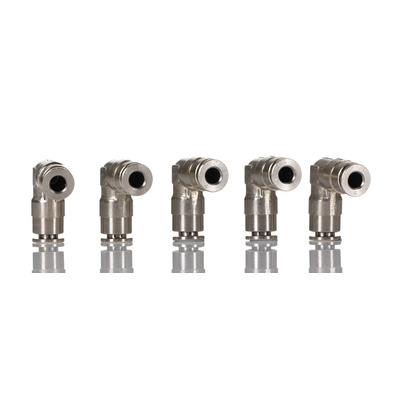

IMI Norgren Pneumatic Fitting, Elbow Type, 10g Weight - PNEUFIT 10 Series - 100400400

Redirect compressed airflow in your system with this pneumatic fitting from IMI Norgren. It's an elbow-shaped type that allows you to change direction and install tubes around corners, reducing the risk of kinks or bends that could cause blockages. The component has a 4mm push-in connector on each end, so you can link same-sized pipes without needing to reach for your toolkit. Positive tube anchorage means that once installed, tubing won't pull out or wobble loose. Thanks to its durable nickel-plated brass body, this fitting handles wear and corrosion without breaking a sweat. This means you can rely on it for long-term performance in harsh environments.

Features & Benefits

• Light weight of 10g, so it won't strain your setup
• Performs dependably in a wide operating temperature range of -20°C to +80°C
• Handles operating pressures ranging between -0.9 and 18 bar for broad compatibility

Applications

• Storage facilities and warehouses
• Material handling
• Construction sites

What size is this pneumatic fitting?

The unit has compact dimensions of 22 (L) x 22 (W) x 9mm (H), making it a space-efficient choice.

Datasheet - 100400400
