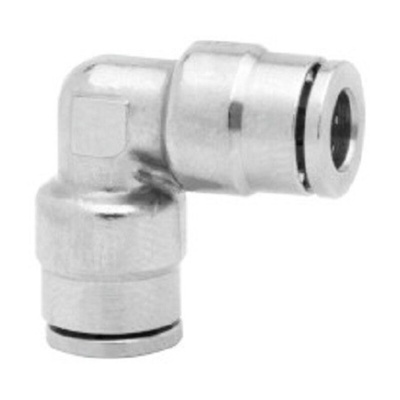

100400800, Norgren PNEUFIT 10 Series Elbow Fitting, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, 10040

IMI Norgren Pneumatic Fitting, Elbow Type, 18 Bar Maximum Operating Pressure - PNEUFIT 10 SERIES - 100400800

Turn a corner in your system with ease by using this elbow pneumatic fitting from IMI Norgren. It has a push-in connector on each end, so hooking it up to 8mm tubing is a breeze. To make sure you get a long service life, it's made from corrosion-resistant, nickel-plated brass. Nitrile rubber seals guard against leakage to keep your system running efficiently. Plus, they're silicone-free, so you can rest assured they won't release any toxic chemicals.

Features & Benefits

• Operating temperature range from -20°C to +80°C makes it suitable for use in harsh industrial environments
• Positive tube anchorage holds your pipework securely in place
• Maximum operating pressure of 18 bar means it can take the strain of demanding applications

Applications

• Factory automation
• Materials handling
• Plastics production

How do I fit tubing to a push-in fitting?

Start by making a square cut across the end of the tubing and ensure it's free from burrs. Push the tubing into the collet until it bottoms out, then pull back to secure it. To disconnect, push the tubing back into the fitting, hold down the collet and gently withdraw the tube.
