100490800, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, Push In 8 mm to Push In 8 mm, Threaded-to-Tube Connection Style,

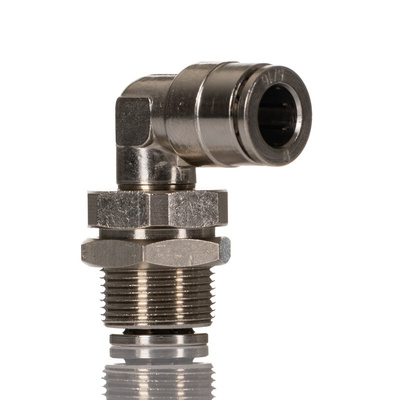

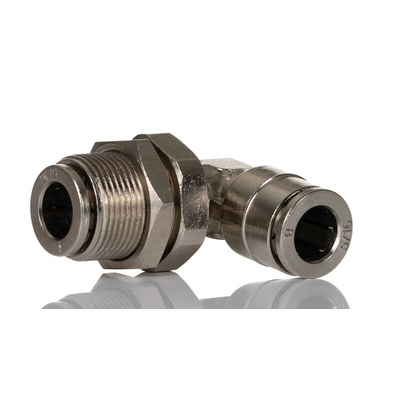

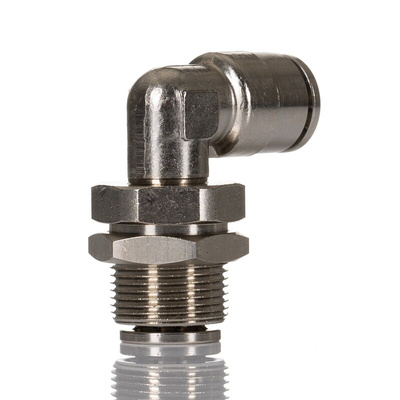

IMI Norgren Pneumatic Fitting, Bulkhead Swivel Elbow Type, Non-PTFE Thread Sealant - PNEUFIT 10 Series - 100490800

Make easy connections between pipes in your pneumatic system with this fitting from IMI Norgren. It's a bulkhead swivel elbow type with an 8mm push-in adapter on one end to connect to hoses and an M16 connector on the other end for threaded components. The unit's 90° design lets you change the flow direction of compressed air as it travels through your system, without putting stress on pipework. As its nickel-plated brass body holds out against corrosion and impact, this is an option you can count on for long-term service.

Features & Benefits

• Non-PTFE sealant ensures a tight connection to threaded pipes
• Compact port diameter of 8mm makes it the right fit for smaller tubes
• Light weight of 45g so puts minimal strain on your setup
• Safe to use in demanding conditions, thanks to an operating temperature range between -20°C and +80°C

Applications

• Marine industry
• Construction sites
• Robotics systems

How do I prevent leakages when linking tubes to this pneumatic fitting?

To prevent leakages, it's important to achieve a straight cut at the end of the tube when connecting this component.

Datasheet - 100490800
