100600400, Norgren PNEUFIT 10 Series Straight Fitting, Push In 4 mm to Push In 4 mm, Tube-to-Tube Connection Style, 10060

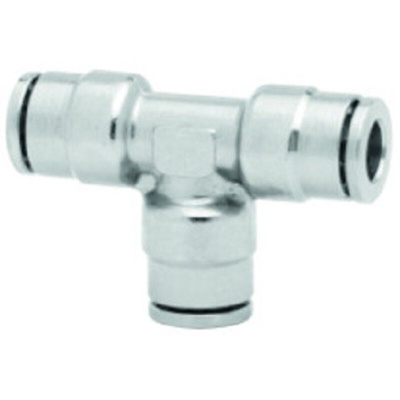

IMI Norgren Pneumatic Fitting, Tee Adaptor Type, 18 Bar Maximum Operating Pressure - PNEUFIT 10 Series - 100600400

Keep compressed air moving along through your industrial system with this pneumatic fitting from IMI Norgren. Its tee-shaped body features two outlet ports and one inlet port, all with 4mm connectors to pair neatly with commonly used tubing. Installation is a breeze, thanks to the push-in connection style. For rapid circuit assembly, simply push your tube directly into the port until you feel the collet grab on – no tools required. A quick-release mechanism makes it easy to remove a pipe by simply holding down the collet and pulling gently.

Features & Benefits

• Silicone-free O-ring minimises leakage by forming a tight seal around the tubing
• Nickel-plated brass housing resists wear and corrosion
• Broad operating pressure range of -0.9 to 18 bar stands up to the strain of industrial equipment
• Compact dimensions of 34 (L) x 22 (W) x 9mm (H) ensures it fits easily into tight setups
• Performs reliably in harsh conditions with a temperature range between -20°C and +80°C

Applications

• Food and beverage manufacturing
• Automotive production
• Pharmaceutical research and development

Which tubing types can I push into this pneumatic fitting?

The versatile unit works with PA and PUR tubing, both plasticised and unplasticised, so it's a handy general-purpose choice.

Datasheet - 100600400

Catalogue - World-Class Motion and Fluid Control Solutions
