101250428, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, R 1/4 Male to Push In 4 mm, Threaded-to-Tube Connection Style,

IMI Norgren Pneumatic Fitting, Straight Adaptor Type, -0.9 to 18 Bar Operating Pressure - PNEUFIT 10 Series - 101250428

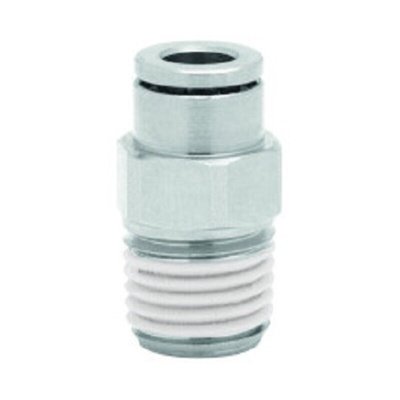

Swiftly adapt your air supply lines with this straight pneumatic fitting from IMI Norgren. It has an R1/4 inlet and a 4mm outlet, giving you a nifty way to convert a BSP port to metric. The threaded end is tapered, and a non-PTFE sealant is pre-applied to ensure a leak-free fit. You can tighten this fitting with a standard wrench as its body is hexagonal in shape. At the other end, the connector just pushes in, enabling quick and easy tube attachment to get air flowing.

Features & Benefits

• Collet and O-ring reliably hold the tube in place and prevent leaks
• Nickel-plated brass body for strength and durability
• Pack of five to see you through multiple connections

Applications

• Robotics systems
• Electronics assembly lines
• Packaging systems
• Beverage production

What operating pressure range can this fitting handle?

Thanks to its rugged construction, this fitting works safely at operating pressures from -0.9 to 18 bar. This means you can use it in vacuum and high-power applications.

What ambient temperatures does the unit tolerate?

It withstands operating temperatures between -20°C and +80°C to cope with installation in factory conditions.

Datasheet - 101250428
