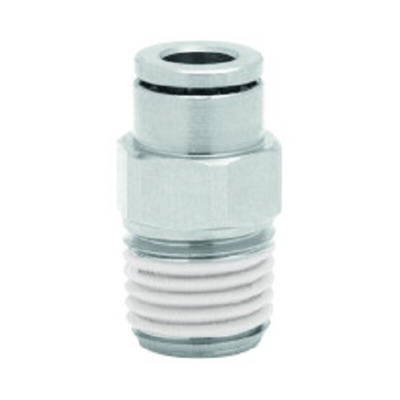

101250528, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, R 1/4 Male to Push In 5 mm, Threaded-to-Tube Connection Style

IMI Norgren Pneumatic Fitting, Threaded-to-Tube Connection Type, Non-PTFE Thread Sealant - Pneufit 10 Series - 101250528

Need to bridge the connection gap between tubes and pipes in your pneumatic circuits? This fitting from IMI Norgren is the middleman you need. On one end of this unit, you'll find a 5mm push-in connector for simple and tool-free attachment of an air tube. The other end has an R1/4 male inlet port that lets you screw in a threaded pipe. Thanks to its nickel-plated brass body, this adapter holds its own against corrosion and impact, giving you long-term service, even when the going gets tough.

Features & Benefits

• Comes with PTFE-free thread sealant to ensure a tight, leakage-proof connection to the pipes
• Delivers reliable performance at temperatures from -20°C to +80°C
• NBR seals block out dust and contaminants for optimal performance
• Silicone-free design prevents contamination of sensitive equipment
• Internal hexagon for assembly using a standard Allen key

Applications

• Assembly lines
• Robotics and automation systems
• Aerospace industry

What's meant by positive tube anchorage in a pneumatic fitting?

Pneumatic fittings have to handle being connected and disconnected many times while still keeping their tightness, which is also called anchorage. The Pneufit 10 series of adapters feature positive tube anchorage, meaning that tugging movements on the pipes won't dislodge them or affect your pneumatic circuit's performance.

Datasheet - 101250528

Catalogue - World-Class Motion & Fluid Control Solutions
