101470428, Norgren PNEUFIT 10 Series Elbow Fitting, R 1/4 Male to Push In 4 mm, Threaded-to-Tube Connection Style, 10147

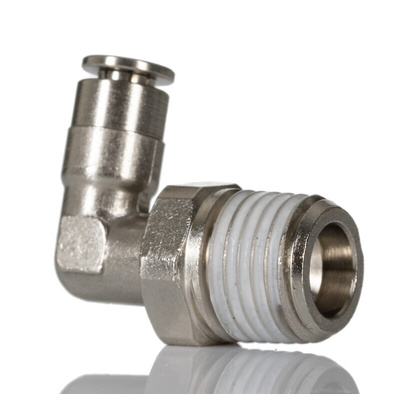

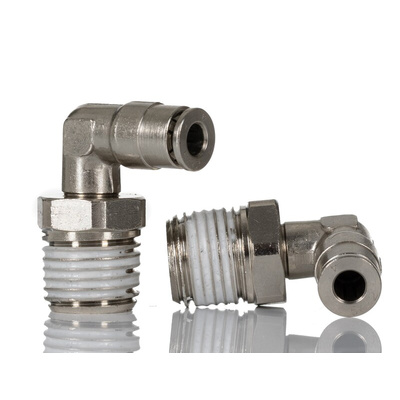

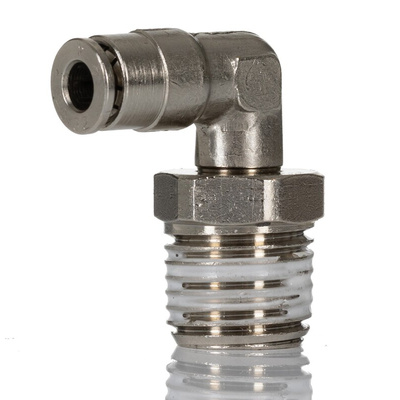

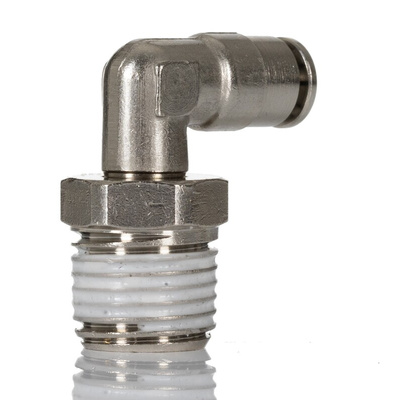

IMI Norgren Pneumatic Fitting, Elbow Shape, Nickel-Plated Brass Construction - PNEUFIT 10 Series - 101470428

Take the pressure off your compressed air pipes with this pneumatic fitting from IMI Norgren. Its elbow shape makes it a cinch to hook up tubing to an instrument such as a regulator without the risk of bending and damaging your hose. For hassle-free assembly, a push-in connector on one end lets you easily attach a pipe without using tools. Thanks to its positive tube anchorage, you can be sure of a durable connection that withstands pressures between -0.9 and 18 bar. As this fitting is made from robust nickel-plated brass, it's tough enough to use in harsh operating conditions.

Features & Benefits

• Non-PTFE-based thread sealant reduces the risk of toxic fumes when heated
• Nitrile rubber O-rings resist high pressure with minimal risk of cracking
• Dimensions of 23 (L) x 29 (W) x 11.5mm (H) makes it suitable for compact circuits

Applications

• Automotive manufacturing
• Pharmaceutical industry
• Mining and minerals processing
• Agricultural equipment

What air hose is compatible with this pneumatic fitting?

For versatility, the adapter can be used with both firm PA and more flexible PUR hoses.
