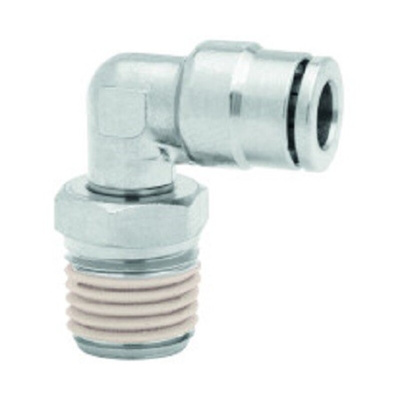

101470628, Norgren PNEUFIT 10 Series Swivel Elbow, R 1/4 Male to Push In 6 mm, Threaded-to-Tube Connection Style

IMI Norgren Pneumatic Fitting, Positive Tube Anchorage, Elbow Shape - Pneufit 10 Series - 101470628

Need to change the direction of airflow in your pneumatic system? Choose this fitting from IMI Norgren to help you turn the corner. Its elbow design helps to channel compressed air at a 90° angle, making it useful in confined or complex setups. You'll find a push-in 6mm adapter at one end for simple and tool-free attachment of air tubes. The other end has a threaded connector that gets a firm grip on threaded pipes. As it's made of durable nickel-plated brass, this is an option you can rely on to shrug off the effects of corrosion and impacts.

Features & Benefits

• Performs without a hitch at temperatures between -20°C and +80°C
• Positive tube anchorage achieves a firm hold on tubes and prevents them from coming loose
• Silicone-free construction prevents contamination to ensure optimal performance
• Broad operating pressure range between -0.9 and 18 bar makes it safe to use in most compressed air applications

Applications

• Aerospace industry
• Water treatment plants
• Assembly lines

What's the function of the O-ring in this pneumatic fitting?

The O-ring in this adapter acts as a seal, blocking out dust and preventing leaks to keep your system ticking over efficiently.
