101470638, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, R 3/8 Male to Push In 6 mm, Threaded-to-Tube Connection Style,

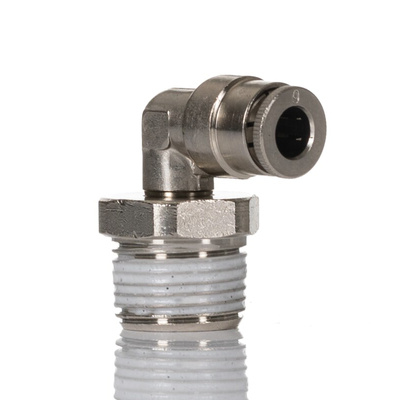

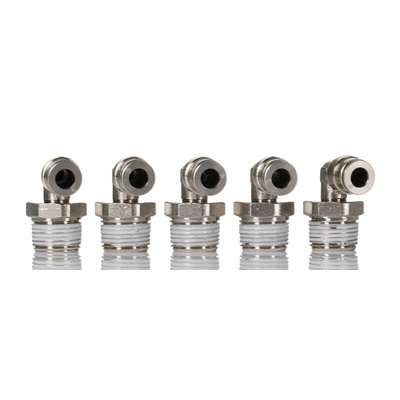

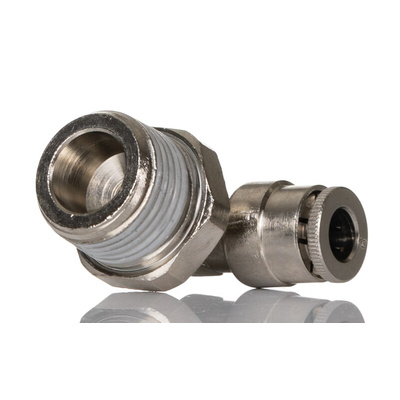

IMI Norgren Pneumatic Fitting, Elbow Type, Silicon-Free O-Ring - PNEUFIT 10 Series - 101470638

To connect tubes in tricky spots or change the flow direction in your compressed air system, grab this pneumatic fitting from IMI Norgren. It's an elbow-shaped connector that links hoses at right angles. Thanks to its swivel action, adjusting pipes during maintenance is a walk in the park. As it's made from nickel-plated brass, the rust-resistant unit brushes off corrosion in damp or humid conditions. This means it offers hiccup-free performance in a wide temperature range between -20°C and +80°C.

Features & Benefits

• R3/8 male thread matches standard pneumatic components
• Wide operating pressure range between -0.9 and 18 bar makes it a versatile option
• Weighs just 39g, so puts minimal strain on your tubes

Applications

• Railway infrastructure
• Automated industrial processes
• Research and development laboratories
• Automotive industry

What size tube does this pneumatic fitting take?

This component accommodates tubes with a 6mm OD, so it's ideal for routing and connecting smaller hoses.

How do I connect a tube to this pneumatic fitting?

Connecting a hose is conveniently tool-free, thanks to the unit's push-in design. Just insert the pipe, pull back gently and the retaining collet securely anchors the line to take accidental disconnections out of the equation.

Datasheet - 101470638
