101470838, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, R 3/8 Male to Push In 8 mm, Threaded-to-Tube Connection Style,

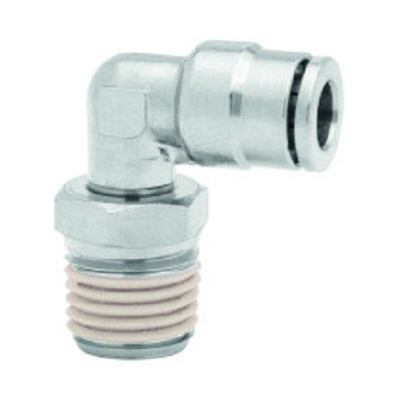

IMI Norgren Pneumatic Fitting, Elbow Type, 30g Weight - PNEUFIT 10 Series - 101470838

Want your hosing to turn a corner without losing pressure? Pick this elbow-shaped pneumatic fitting from IMI Norgren for threaded-to-tube connections at right angles. Thanks to the unit's push-in port, connecting a hose is a tool-free job, as you just slot it in. Positive anchorage firmly secures your line to help prevent disconnections caused by pulling or jostling. A maximum operating pressure of 18 bar makes this component suitable for your demanding industrial systems. The space-saving part measures 32 (L) x 30.25 (W) x 19.6mm (H), ensuring it fits like a glove in tight spaces.

Features & Benefits

• Light weight of only 30g adds minimal strain to your system
• Versatile, as it works with PA and PUR tubes
• R3/8 male thread is widely compatible with standard pneumatic components

Applications

• Aerospace engineering
• Industrial compressors
• Access controls
• Medical equipment

Can I use this pneumatic fitting in damp or humid conditions?

Yes. As it's made from nickel-plated brass, this rust-resistant unit takes tough conditions in its stride.

How do I install this pneumatic fitting?

Installation is easy as pie – just screw the taper thread into your component and insert the tube at the push-in end.

Datasheet - 101470838
