101471018, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, R 1/8 Male to Push In 10 mm, Threaded-to-Tube Connection Style,

IMI Norgren Pneumatic Fitting, Swivel Elbow Adaptor Type, BSP Taper Thread - PNEUFIT 10 Series - 101471018

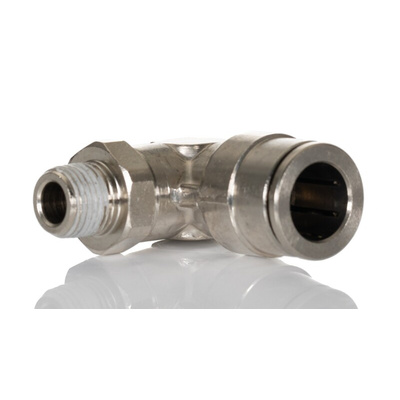

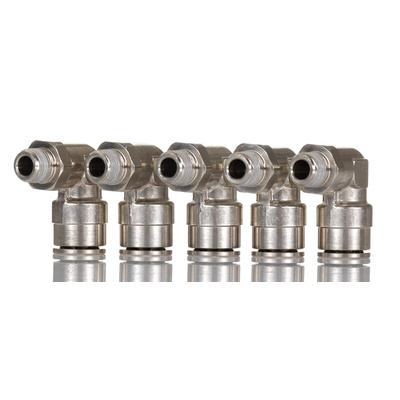

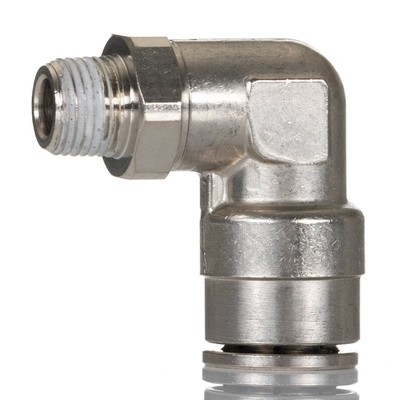

When you need a compressed air system that performs under pressure, choose this pneumatic fitting from IMI Norgren. It's up for the challenge of heavy-duty systems, thanks to an operating pressure range of -0.9 to 18 bar. Designed in a 90° elbow shape, the fitting lets you link components from two points. You'll find a 10mm outlet port at one end and a threaded R1/8 connector at the other, so you can pair it with commonly used pipes.

Features & Benefits

• Fits where space is limited with compact dimensions of 34.6 (L) x 32.8 (W) x 16.2mm (H)
• Broad operating temperature range between -20°C and +80°C means it performs in demanding conditions
• Nickel-plated brass housing resists wear and corrosion
• Threaded end comes with pre-applied sealant to save time
• Enables speedy assembly of pneumatic circuits, thanks to a push-in tube connector

Applications

• Automated assembly lines
• Bottling plants
• Paper production

How much does this pneumatic fitting weigh?

It weighs just 37g, so it won't put extra strain on your system.

What type of tubing can I use with this unit?

The connector is compatible with both nylon and polyurethane tubing, making it a versatile choice.

Datasheet - 101471018

Catalogue - World-Class Motion and Fluid Control Solutions
