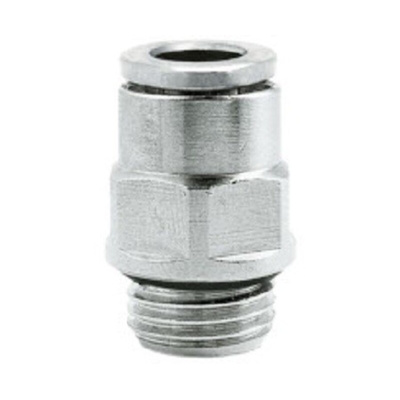

102251028, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, G 1/4 Male to Push In 10 mm, Threaded-to-Tube Connection Style,

IMI Norgren Pneumatic Fitting, Straight Adapter, G1/4 Male Threaded Inlet Port - PNEUFIT 10 Series - 102251028

Keep compressed air systems humming along with this pneumatic fitting from IMI Norgren. Its straight threaded profile includes a G1/4 male connector at one end and a push-in 10mm port to make easy connections with tubing and pipes. For quick and easy assembly, simply push your tube into the fitting. As it's made from nickel-plated brass, this adapter resists corrosion, so you can be sure of its long lifespan, even in harsh industrial settings. A maximum operating pressure of 18 bar means it stands up to the strain of heavy machinery.

Features & Benefits

• Weighs just 26g, so it won’t put stress on your pneumatic system
• Performs reliably in environments with temperatures between -20°C and +80°C
• O-ring achieves a tight seal around your pipe to minimise leakage
• Compatible with commonly used PA and PUR tubing

Applications

• Automotive manufacturing
• Distribution hubs
• Automated assembly lines

What material is the fitting's O-ring made from?

This fitting comes with a silicone-free NBR O-ring that maintains system pressure without the risk of contamination. As this material resists tearing and shrugs off water and oil, it's tough enough for use in contaminated settings.

Datasheet - 102251028
