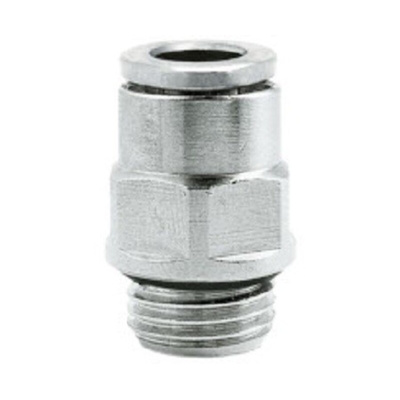

102251228, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, G 1/4 Male to Push In 12 mm, Threaded-to-Tube Connection Style,

IMI Norgren Pneumatic Fitting, Straight Adaptor Type, -0.9 to 18 Bar Operating Pressure - PNEUFIT 10 Series - 102251228

To achieve a tight connection in your pressurised system, pick this pneumatic fitting from IMI Norgren. It's an adaptor with a G1/4 tapered thread at one end and a push-in connector at the other. As it has a straight orientation, you can use it to set up straight-line airflow in your equipment. The part comes with O-rings that help prevent leakage and keep contaminants out of the medium. With a broad operating temperature range between -20°C and +80°C, this unit takes the strain in demanding industrial settings.

Features & Benefits

• Operating pressure between -0.9 and 18 bar for safe use in vacuum or high-pressure processes
• Tough nickel-plated brass body resists corrosion
• NBR O-rings resist oils and solvents to maintain system pressure

Applications

• HVAC equipment
• Marine engineering
• Production lines
• Waste management systems

How do I remove a hose from this pneumatic fitting?

The push-in fitting makes removal as easy as insertion. Simply push down on the collet and gently withdraw the hose, without the need for any complex tools.

What tube size can I fit into this adapter?

This fitting has an OD tube size of 12mm to take a medium-sized hose.

Datasheet - 102251228
