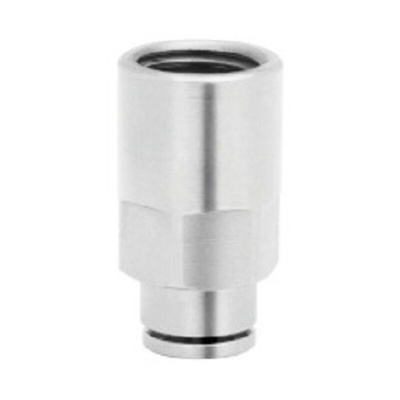

102260628, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, G 1/4 Male to Push In 6 mm, Threaded-to-Tube Connection Style,, Фитинг

IMI Norgren Pneumatic Fitting, Nickel-Plated Brass Body, -0.9 to 18 Bar Operating Pressure - Pneufit 10 Series - 1022606

Connect components in seconds with this pneumatic fitting from IMI Norgren. It's a threaded-to-tube type that keeps tubes and pipes secured in place, even during heavy-duty operations where an operating pressure range of -0.9 to 18 bar can be expected. The push-in 6mm outlet port makes tube insertion simple and lets you speed through the assembly of pneumatic circuits. A G1/4 male threaded connection at the other end is widely compatible with standard equipment. As it's made from robust nickel-plated brass, this pneumatic fitting resists corrosion and impacts, so stands the test of time.

Features & Benefits

• Withstands harsh industrial settings with ambient temperatures between -20°C and +80°C
• Light weight of 23g, so it won't put strain on your system
• Includes an internal hexagon for easy fitting with an Allen key
• Internal silicone-free O-rings provide a tight seal to maintain air pressure during use

Applications

• Pharmaceutical industry
• Hoisting equipment
• Automated assembly lines

What type of tubing can I use with this pneumatic fitting?

This adaptor can be used with commonly used tubing made from PA 11 or 12, as well as PUR, for wide compatibility.

Datasheet - 102260628
