102470618, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, G 1/8 Male to Push In 6 mm, Threaded-to-Tube Connection Style

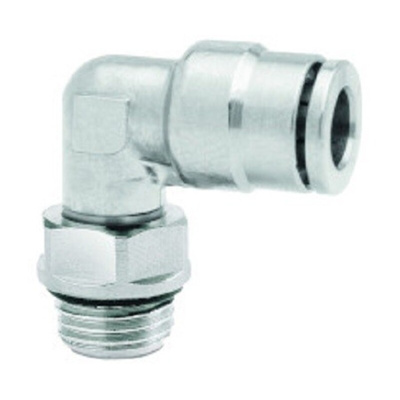

IMI Norgren Pneumatic Fitting, Elbow Shape, 18 Bar Maximum Operating Pressure - Pneufit 10 Series - 102470618

Give tricky connections the elbow with this 90° pneumatic fitting from IMI Norgren. It has a push-in end for quick and easy tube attachments that makes line swapovers a breeze. The other end has a standard G1/8 thread for universal compatibility with pneumatic systems. An integral hexagonal shape on the body lets you tighten it easily with a wrench. Thanks to the strong and corrosion-resistant nickel-plated brass housing, this connector's a tough cookie that can handle pressures up to 18 bar.

Features & Benefits

• Length of 26.5mm takes up minimal space
• Minimum operating pressure of -0.9 bar for use in vacuum applications
• Includes a collet and O-ring to give you a secure, leak-free connection
• Nitrile rubber seals are silicone-free to keep air supplies oil-resistant and reduce contaminants
• Handles -20°C to +80°C temperatures for versatility

Applications

• Industrial automation
• Electronics assembly
• Process control
• Laboratories

What tubing fits the push-in end of this pneumatic fitting?

Any flexible 6mm tubing such as the PA2 series nylon air pipe (218-0638) works with this pneumatic fitting.
