102470828, Norgren PNEUFIT 10 Series Straight Threaded Adaptor, G 1/4 Male to Push In 8 mm, Threaded-to-Tube Connection Style,

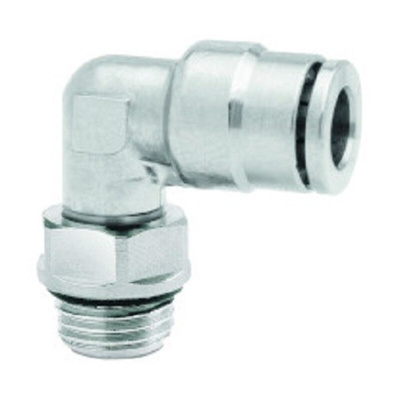

IMI Norgren Pneumatic Fitting, Elbow Shape, Nickel-Plated Brass Body - PNUEFIT 10 Series - 102470828

Need a trusty go-between to unite pipes and tubes in your pneumatic systems? Count on this fitting from IMI Norgren to do the job. It has an 8mm push-in adapter on one end and a G1/8 threaded port on the other for linking tubes to pipes. Thanks to its elbow-shaped design, this component is the right choice when you want to channel compressed air flow in a different direction. Its durable brass body holds fast against wear and impact, making it fit for use in harsh environments. Nickel plating improves its resistance to corrosion, so you can be sure of long-term service.

Features & Benefits

• Safe to use in challenging settings thanks to an operating temperature range between -20°C and +80°C
• Light weight of 28g means it won't strain your pipework
• Maximum operating pressure of 18 bar makes it suitable for heavy-duty applications
• NBR seals block out dust and prevent leakages to ensure optimal performance

Applications

• Oil and gas plants
• Mining industry
• Marine engineering

What's the benefit of this pneumatic fitting being silicone-free?

This unit's silicone-free construction reduces the risk of contaminants getting into your media, making it safe for use in sensitive environments such as food production facilities.
