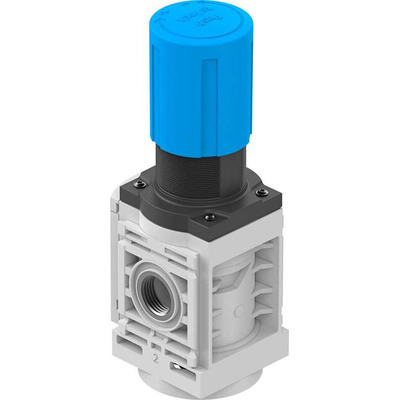

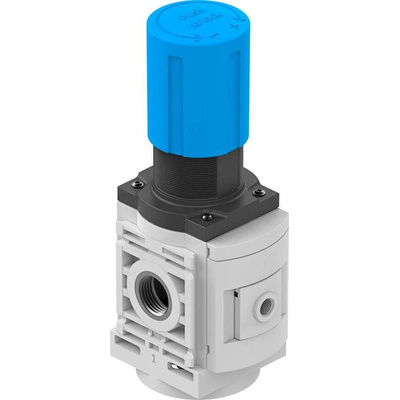

MS6-LR-1/2-D6-A8-B, Festo MS Threaded Filter Regulator, G 1/2, G, G 1/2

Festo Filter Regulator, 0.3 Bar to 7 Bar Pressure Regulation Range, 6000L/min Nominal Flow Rate - MS6-LR-1/2-D6-A8-B

Keep your pneumatic system on the level with this filter regulator from Festo. It lets you fine-tune your operating pressure precisely to keep your setup ticking over efficiently. Once configured, it keeps the pressure steady in the face of fluctuations in your supply, making sure your equipment runs smoothly. The latching rotary knob actuator makes it easy to set the pressure you need and guards against accidental adjustment, so you'll have no unpleasant surprises.

Features & Benefits

• Two G1/2 threaded ports offer easy and widely compatible connections
• Operating pressure range of 0.3 to 7 bar makes it suitable for low-pressure applications
• Nitrile rubber seals prevent leaks to keep your system pressure consistent

Applications

• Materials handling
• Food and beverage industry
• Medical equipment

What's a G1/2 thread?

The G1/2 thread is a metric thread standard used widely in Europe for pipe fittings. With a 1/2-inch nominal diameter, its parallel profile can be used to create leak-tight connections in fluid systems, unlike tapered threads which rely on a sealant to prevent leaks.

Datasheet - MS6-LR-1/2-D6-A8-B

Brochure - Simply Part of the Solution

Instruction Sheet - MS6-LR-1/2-D6-A8-B
