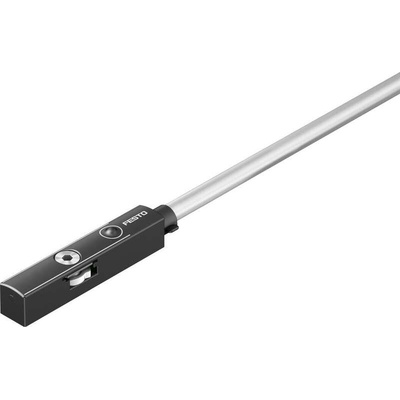

SDBT-MSX-1L-NU-E-2.5-N-LE, Festo Proximity Sensor Proximity Sensor, 24V, NPN, PNP Operation with LED indicator, 8059124

Festo Proximity Sensor, 0.1mm Repetition Accuracy, 24V DC Operational Voltage - SDBT-MSX-1L-NU-E-2.5-N-LE

Keep an eye on your pneumatic drive's piston position using this proximity sensor from Festo. Its repetition accuracy of 0.1mm helps to ensure your automated positioning and clamping system is spot-on every time. The unit is a cinch to install, as it mounts directly onto your drive's cylinder slot. There's no chance of the device wearing out, as it uses the magnetic Hall measuring principle, which means it makes no contact with components. A PA-reinforced, high-alloy steel housing resists wear and corrosion, making this unit compatible with demanding and humid operating environments.

Features & Benefits

• Halogen-free, so it doesn't give off toxic fumes when heated
• Handy yellow and green LEDs indicate switching position and general status
• IP68-rated housing is dust-tight and protected against immersion in up to 1.5m of water for 30 minutes

Applications

• Food and beverage production
• Pharmaceutical manufacturing
• Warehousing facilities
• Assembly lines

Does this proximity sensor come with a cable?

Yes, its conveniently supplied with a 2.5m cable. Its robust PUR jacket protects it from abrasion and wear and provides insulation to minimise the chance of electric shocks.

Datasheet - SDBT-MSX-1L-NU-E-2.5-N-LE

Instruction Sheet - SDBT-MSX
