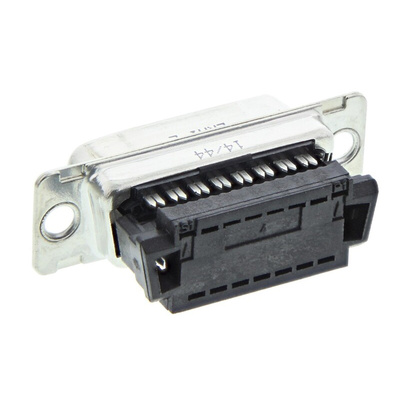

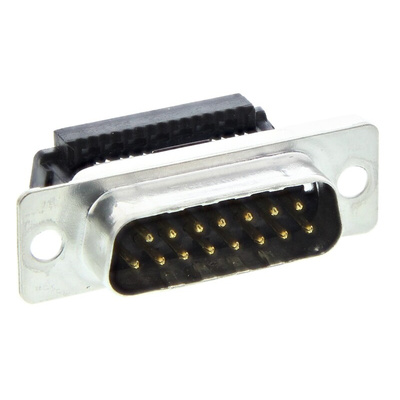

013574, Provertha TMC-SK 15 Way Right Angle Cable Mount D-sub Connector Plug, 1.27mm Pitch, Разъем

Connectors for ribbon cable connection

From ERNI, this TMC series of sub-miniature d-built connectors are designed for use with ribbon cables. With 9, 15, 25, 37 pin connectors available, the series also offers appropriate strain relief and connector screws for reliable interfacing. The trapezoidal design of these connectors assures protection from twisting and human contact.

Features and Benefits:
• Female and male connectors for ribbon cable connection for AWG 28 stranded and AWG 26 solid wire
• Knurled screws and strain relief available as optional extras
• Connecting contacts for all cables in one operation
• Suitable for standard ribbon cable, 1.27 mm raster

Note

Suitable for ERNI cable housing series KSG (e.g. stock no.: 224-1540)

D Type Connectors with Cable cutting technology

Subminiature D Trapezoidal connectors Series TMC Data Sheet
