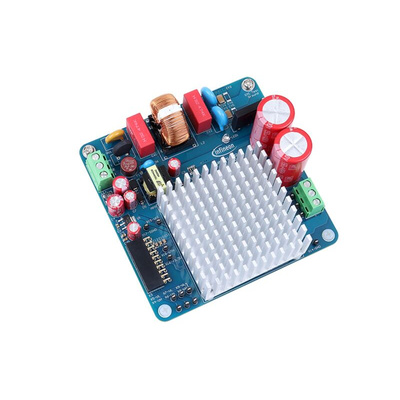

EVALM1IM241TOBO1, Infineon EVAL-M1-IM241

2601003
Номер производителя: EVALM1IM241TOBO1Производитель: Infineon
Цена за шт.
39768.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+ −

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Evaluation board for CIPOS™ Micro IPM, features 600 V IM241-L6T2B IPM

The evaluation board EVAL-M1-IM241 was developed to support customers during their first steps of applications with the IM241 series CIPOS™ Micro IPM. In combination with control-boards equipped with the M1 20pin interface connector, like EVAL-M1-101T, the kit offers a complete system to demonstrate our CIPOS™ Micro IPM technology in motor drives.
The IM241-L6T2B CIPOS™ Micro IPM has 600 V of voltage and 6 A of current rating. It is optimized for small home appliances like pumps, fans and other low power motor drive applications.

Summary of Features

  • Input voltage 110∼230 VAC

  • Maximum 2.5 A input current at 110 VAC

  • Maximum 250 W motor power output at 220 VAC

  • On board EMI filter and pass EMI standards EN55032

  • Auxiliary power supply with 15 V, 3.3 V

  • Overcurrent hardware protection & over temperature protection

  • Sensing of DC-link voltage

  • Thermistor output

  • PCB is 100 mm x 100 mm, two layers with 2 oz. copper

  • RoHS compliant

    • Benefits

  • Evaluate IM241-L6T2B

  • Get your motor running within an hour with EVAL-M1-101T

  • Start to learn more about motor control with Infineon parts

    • Applications

  • Hood fan

  • Motor control and drives

  • Refrigeration and freezing

  • Residential air conditioning: Smart and efficient cooling

  • Washing and drying

    • Note

    Classification 'Motor Driver Board'

    Kit Name ’EVAL-M1-IM241’

    Processor Family Name ’Motor Control Ics’

    Technology ’Motor Driver’

    Техническая спецификация
    pdfDatasheet - EVALM1IM241TOBO1
    Классификация комплекта:
    Оценочная плата
    Название комплекта:
    EVAL-M1-IM241
