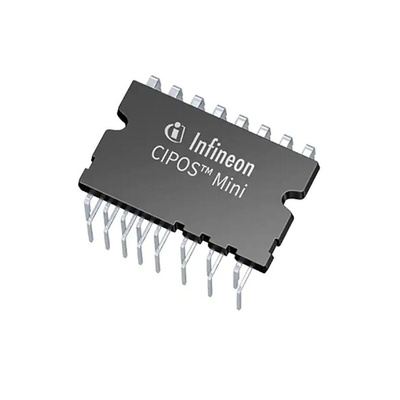

Infineon IM523X6AXKMA1, AC Motor Intelligent Power Module, 2.85 V ±34A

The Infineon CIPOS IM523 product family offers the chance for integrating various power and control components to increase reliability and optimize PCB size and system cost. It is designed to control three-phase motors in variable speed drives. The package concept is specially adapted to power applications, which need good thermal conduction and electrical isolation, but also less EMI and overload protection. To deliver excellent electrical performance, Infineon’s leading-edge RC-Drives IGBTs are combined with an optimized SOI gate driver.

Fully isolated dual in-line moulded module
Lead-free terminal plating
RoHS compliant
Overcurrent shutdown
Built-in NTC thermistor for temperature monitor
Sleep function

Datasheet - IM523X6AXKMA1
