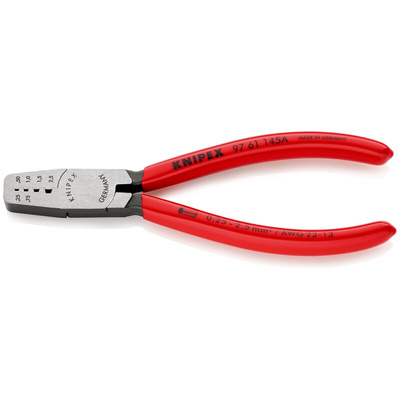

97 61 145 A, Knipex Hand Crimp Tool for Wire Ferrules, Обжимные клещи

Crimping pliers for end sleeves 145mm - 0,25 - 2,5mm² - Chrome

Knipex high quality crimping pliers are designed to be used wherever end sleeves or cable ferrules are crimped. This portable crimping tool is designed to crimp pieces of material together in sizes from 0.25 to 2.5 mm², especially terminal blocks on control systems due to their generally high and thin supports. The four crimping dies with trapezoidal cross-sections are clearly visible and marked to ensure correct insertion of the end sleeves. After applying manual force to crimp the end caps, the cable end cap is crimped.

Features and benefits

- PVC coated
- For end sleeves in accordance with DIN 46228 parts 1 + 4 between 0.25 and 2.5 mm².

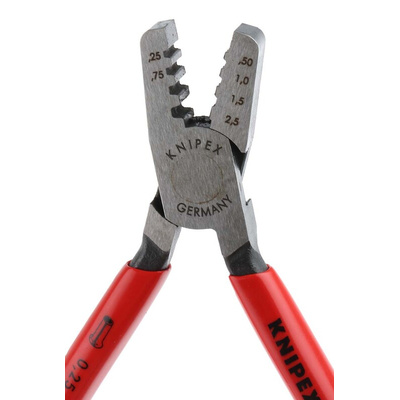

- 4 trapezoidal crimping sections (crimping dies)
- Clear marking for safe positioning and crimping
- Vanadium Electrical Steel - Forged, Oil Hardened

Typical applications

These crimping pliers can be used to work on
- IT control systems
- Domestic electrical systems
- Electronic systems

Product maintenance

- To maintain proper operation and long life, the shafts and other moving parts should be lubricated regularly.
- Lubrication* is recommended at least every 10,000 cycles when the tool is exposed to dirt or other contaminants.
*Use a light non-mineral oil.

Importance of a high quality crimp

If there are voids, corrosion can occur, causing resistance and excessive heat that damages the electrical connection. Using a good quality crimping tool will ensure a complete crimp, preventing future deterioration of the electrical connection and breakage of the insulation.
